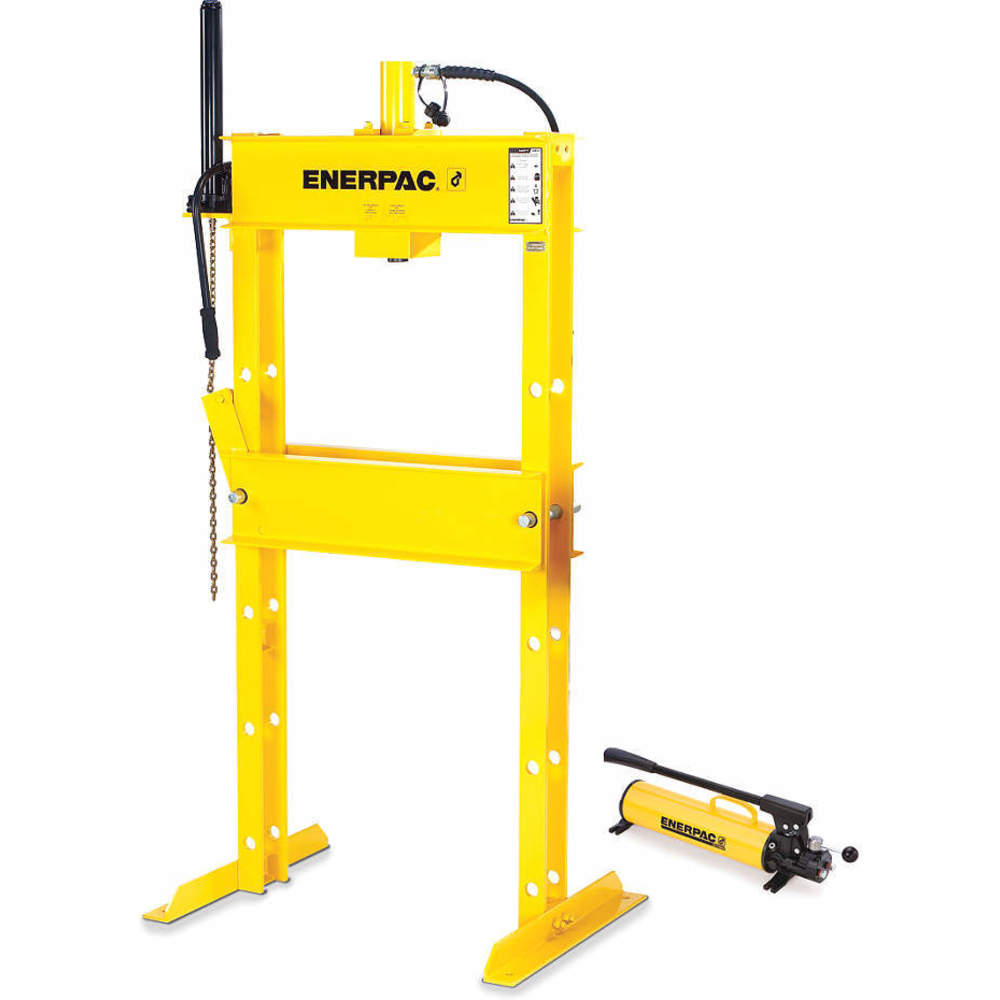

ENERPAC IPH3080 Hydraulic Press 30 Ton Manual Pump
Due to weight and dimension restrictions, please request a shipping quote
€13,032.36 /unit
Request a Quote
Payment
Due to weight and dimension restrictions, please request a shipping quote
Payment
| Item | Hydraulic Press |
| Adjustable Bed | Yes |
| Application | Service Work |
| Base Length | 40" |
| Base Width | 30" |
| Cylinder | Mfr. No. RR-3014 |
| Cylinder Stroke | 14" |
| Cylinder Type | Double Acting |
| Dimension C | 57" |
| Dimension D | 11 22/25" |
| Dimension E | 29" |
| Dimension F | 40 1/2" |
| Dimension G | 4" |
| Dimension H | 13 1/4" |
| Dimension J | 30" |
| Dimension K | 5 1/4" |
| Dimension L | 10.69" |
| Dimension M | 26 1/2" |
| Dimension N | 76" |
| Distance Between Uprights | 29" |
| Features | Welded Frame |
| Frame Capacity | 30 ton. |
| Frame Type | H Frame |
| Hose Length | 6 ft. |
| Max. Bed Width | 29" |
| Max. Operating Pressure | 10000 psi |
| Max. Vertical Daylight | 54 1/2" |
| Min. Dimension A | 7" |
| Mx. Dimension A | 54 1/2" |
| Overall Length | 30" |
| Power Source | Manual |
| Promotion Restriction | Not Eligible For Promotion |
| Pump Handle Effort @ Rated Capacity | 77 lbs. |
| Pump Type | Manual |
| Stroke | 7" |
| Strokes To Extend Piston 1 In | 7 |
| Width Between Table Channels | 4" |
| Base Depth | 36" |
| Capacity | 30 ton. |
| Cylinder Model Number | RR3014 |
| Hydraulic Hose Length | 6 ft. |
| Includes | Gauge Adaptor, General Purpose Hydraulic Cylinder, High Pressure Hydraulic Hose, Hydraulic force and Pressure Gauge, Hydraulic Hand Pump |
| Operating Pressure | 10000 psi |
| Operation | Manual |
| Overall Depth | 36" |
| Overall Height | 89 1/4" |
| Overall Width | 42 3/4" |
| Press Bed Depth | 4" |
| Press Bed Width | 29" |
| Pump Model Number | P84 |
| Ram Advance Speed - Maximum | 7 in./sec. |
| Ram Press Speed - Maximum | 34 in./sec. |
| Ram-to-table Distance - Maximum | 54 1/2" |
| Ram-to-table Distance - Minimum | 7" |
| Reservoir Capacity | 134 cu. in. |
| Ship weight (kg) | 298.8 |
| Ship height (cm) | 205.74 |
| Ship length (cm) | 76.2 |
| Ship width (cm) | 76.2 |
| HS code | 8462918090 |
| Country of Origin | US |
| Product | Model | Capacity | Cylinder Type | Dimension B | Dimension C | Dimension D | Dimension E | Dimension F | Dimension G | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
IPE1215 | 10 ton. | Single-Acting, Spring Return | - | 46.75" | 5" | 18.63" | 24.88" | - | €7,438.86 | |
 |
IPA1220 | 10 ton. | Single-Acting, Spring Return | - | 46.75" | 5" | 18.63" | 24.88" | - | €4,015.44 | RFQ
|
 |
IPA2520 | 25 ton. | Single-Acting, Spring Return | - | 57" | 11.88" | 29" | 40.5" | 4" | €11,309.76 | RFQ
|
 |
IPE10060 | 100 ton. | Double Acting, Hydraulic Return | 20" | 51" | 11.69" | 35" | 51" | 5.75" | €36,753.75 | |
|
IPE5060 | 50 ton. | Double Acting, Hydraulic Return | 18.76" | 54" | 10.38" | 28.75" | 42.75" | 5" | €26,700.30 | |
 |
IPH1240 | 10 ton. | Single-Acting, Spring Return | - | 46.75" | 5" | 18.63" | 24.88" | - | €3,433.32 | |
 |
IPH2531 | 25 ton. | Single-Acting, Spring Return | - | 57" | 11.88" | 29" | 40.5" | 4" | €11,113.74 |
