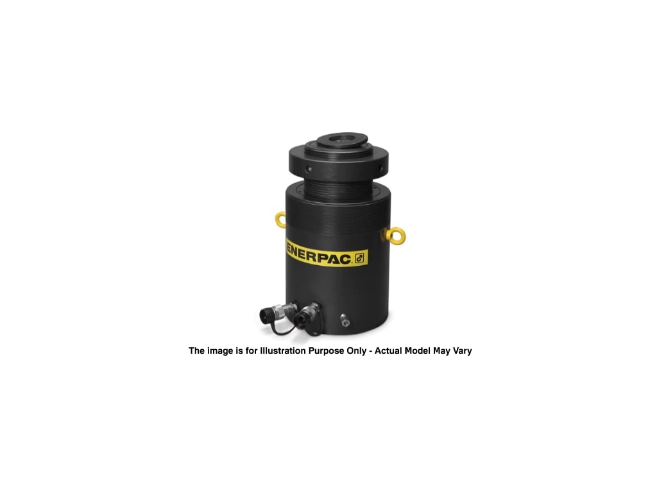

ENERPAC HCRL30012 Lock Nut Cylinder, Dual Acting, 300 Ton
Get it by Monday, Jun 16
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Hydraulic Cylinder |
| Capacity Class (tonnage) | 300 |
| Collapsed Height A (in) | 23.46 |
| Collapsed Height A (mm) | 596 |
| Coupler | CR400 Coupler |
| Coupler | 700 |
| Cylinder Effective Area Advance (cm2) | 424,1 |
| Cylinder Effective Area Advance (in2) | 65.74 |
| Extended Height B (in) | 35.28 |
| Extended Height B (mm) | 896 |
| Material | Steel |
| Maximum Cylinder Capacity Advance (kn) | 2969 |
| Maximum Cylinder Capacity Advance (short Tons) | 334 |
| Maximum Operating Pressure (psi) | 10,150 |
| Oil Capacity Advance (cm3) | 12723 |
| Oil Capacity Advance (in3) | 776.41 |
| Oil Capacity Retract (cm3) | 1060 |
| Oil Capacity Retract (in3) | 64.70 |
| Plunger Type | Solid |
| Return Type | Double-Acting, Hydraulic Return |
| Stroke (in) | 11.81 |
| Stroke (mm) | 300 |
| Surface Treatment | Nitride |
| Ship weight (kg) | 363.29 |
| Ship height (cm) | 59.59 |
| Ship length (cm) | 59.59 |
| Ship width (cm) | 68.53 |
| Country of Origin | US |
