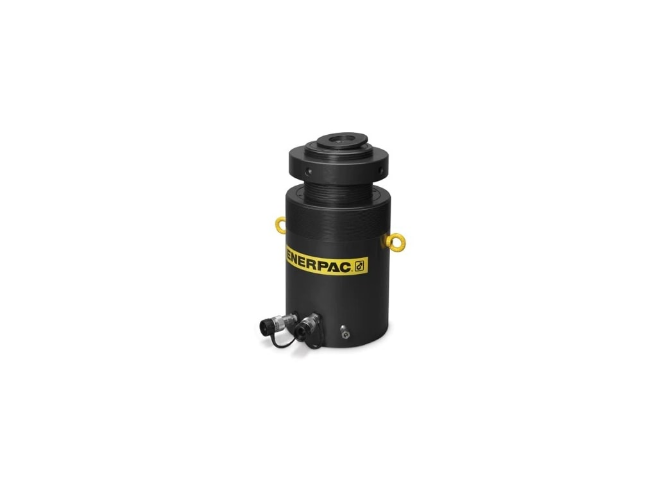

ENERPAC HCRL2006 Lock Nut Cylinder, Dual Acting, 200 Ton
Get it by Monday, Jun 16
€15,773.67 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Hydraulic Cylinder |
| Capacity Class (tonnage) | 200 |
| Collapsed Height A (in) | 15.7 |
| Collapsed Height A (mm) | 399 |
| Coupler | CR400 Coupler |
| Coupler | 700 |
| Cylinder Effective Area Advance (cm2) | 285,9 |
| Cylinder Effective Area Advance (in2) | 44.31 |
| Extended Height B (in) | 21.61 |
| Extended Height B (mm) | 549 |
| Material | Steel |
| Maximum Cylinder Capacity Advance (kn) | 2001 |
| Maximum Cylinder Capacity Advance (short Tons) | 225 |
| Maximum Operating Pressure (psi) | 10,150 |
| Oil Capacity Advance (cm3) | 4288 |
| Oil Capacity Advance (in3) | 261.62 |
| Oil Capacity Retract (cm3) | 530 |
| Oil Capacity Retract (in3) | 32.35 |
| Plunger Type | Solid |
| Return Type | Double-Acting, Hydraulic Return |
| Stroke (in) | 5.91 |
| Stroke (mm) | 150 |
| Surface Treatment | Nitride |
| Ship weight (kg) | 164.57 |
| Ship height (cm) | 39.88 |
| Ship length (cm) | 39.88 |
| Ship width (cm) | 45.87 |
| Country of Origin | US |
