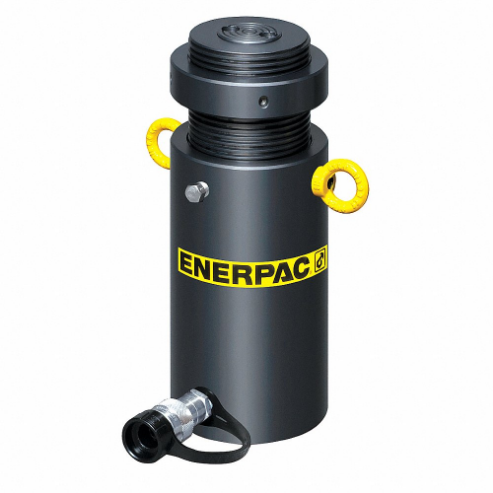

ENERPAC HCL5010 Lock Nut Cylinder, 50 Ton
Get it by Tuesday, Jun 17
€3,354.12 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hydraulic Cylinder |
| Application | Lift, Push, Hold |
| Body Material | Steel |
| Bore Dia. | 3.94" |
| Cylinder Type | High Cycle |
| Includes | (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve |
| Nominal Stroke Length | 10" |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 14.33" |
| Single Acting/double Acting | Single Acting |
| Base Mounting Thread Size | M8 |
| Capacity Class (tonnage) | 50 |
| Collapsed Height A (in) | 14.33 |
| Collapsed Height A (mm) | 364 |
| Coupler | CR400 Coupler |
| Coupler | 700 |
| Cylinder Effective Area Advance (cm2) | 78,5 |
| Cylinder Effective Area Advance (in2) | 12.17 |
| Effective Push Area | 12.17 sq. in. |
| Extended Height | 24.2" |
| Extended Height B (in) | 24.17 |
| Extended Height B (mm) | 614 |
| Material | Steel |
| Max. Pressure | 10000 psi |
| Maximum Cylinder Capacity Advance (kn) | 550 |
| Maximum Cylinder Capacity Advance (short Tons) | 62 |
| Maximum Operating Pressure (psi) | 10,000 |
| Nominal Capacity | 50 ton. |
| Oil Capacity Advance (cm3) | 1963 |
| Oil Capacity Advance (in3) | 119.82 |
| Oil Capacity Push | 119.82 cu. in. |
| Outside Dia. | 5.12" |
| Plunger Type | Solid |
| Return Type | Single-Acting, Load Return |
| Sideload Resistance Of Maximum Capacity (percentage) | 10% |
| Stroke (in) | 9.84 |
| Stroke (mm) | 250 |
| Stroke Length | 9 7/8" |
| Surface Treatment | Nitride |
| Weight | 83 lbs. |
| Ship weight (kg) | 37.32 |
| Ship height (cm) | 36.4 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 13 |
| Country of Origin | CN |
