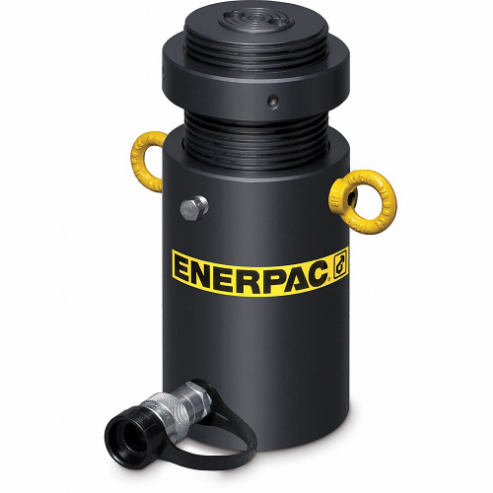

ENERPAC HCL504 50 tons Single Acting Lock Nut Steel Hydraulic Cylinder, 4 Inch Stroke Length
Get it by Tuesday, Jun 17
€2,618.55 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hydraulic Cylinder |
| Base Bolt Circle Dia. | 4.13" |
| Body Material | Steel |
| Bolt Circle Dia. | 4.13" |
| Center Hole Dia. | 3.891" |
| Collapsed Height | 8.43" |
| Collapsed Height With Optional Tilt Saddle | 9.02" |
| Cylinder Bore | 3.94" |
| Cylinder Type | Lock Nut |
| Extended Height | 12 9/25" |
| Finish | Nitride |
| Handle | No |
| Includes | 0 |
| Material | Steel |
| Max. Operating Pressure | 10000 psi |
| Nominal Stroke Length | 4" |
| Oil Capacity | 47.93 cu. in. |
| Optional Tilt Saddle Addition To Collapsed Height | 0.59" |
| Optional Tilt Saddle Dia. | 2 4/5" |
| Outside Dia. | 5.11" |
| Plunger Dia. | 3.94" |
| Plunger Type | Solid |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 8.43" |
| Saddle Diameter | 2 4/5" |
| Saddle Max. Tilt Angle | 5° |
| Saddle Protrusion From Plunger | 2/25" |
| Sideload Resistance Of Max. Capacity | 10% |
| Single Acting/double Acting | Single Acting |
| Stroke Length | 3.94" |
| Weighing Capacity | 50 ton. |
| Collar Thread Size | 1 3/8"-12 |
| Effective Push Area | 12.17 sq. in. |
| Max. Pressure | 10150 psi |
| Nominal Capacity | 50 ton. |
| Oil Capacity Push | 47.93 cu. in. |
| Plunger Thread Size | 1/4" |
| Series | HCL Series |
| Ship weight (kg) | 22.55 |
| Ship height (cm) | 43.18 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 22.86 |
| Country of Origin | CN |
