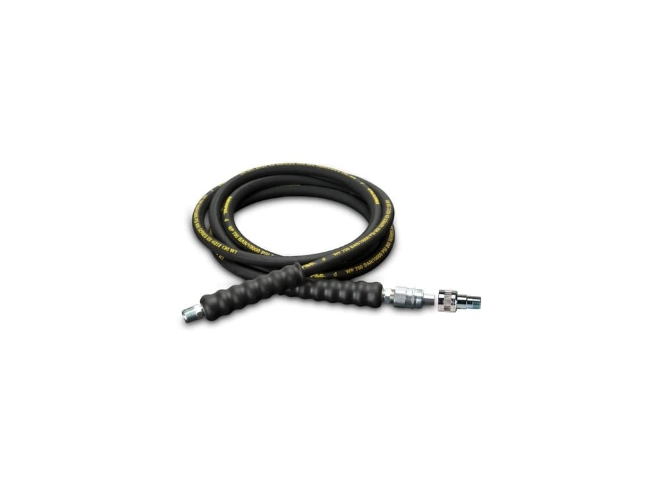

ENERPAC HA9210B Hose, 10 Ft. Size, 3/8 Inch NPTF, 0.25 Inch I.D.
Get it by Tuesday, Jun 17
€297.00 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hydraulic Hose |
| End One Coupler | 3/8" NPTF |
| End Two Coupler | A604 |
| Hose Oil Capacity (cm3) | When using greater hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine the hose oil capacity, use the following for 6,4 mm inside diameter hoses: Capacity (cm3) = 32,1699 x Length (m) |
| Hose Oil Capacity (in3) | When using long hose lengths, it is sometimes necessary to fill the pump reservoir after filling the hoses. To determine the hose oil capacity, use the following for .25" internal diameter hoses: Capacity (in3) = .5892 x Length (ft) |
| Internal Diameter (in) | 0.25 |
| Length (ft) | 6,4 |
| Maximum Operating Pressure (psi) | 10,000 |
| Oil Capacity (in3) | 5.89 |
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 36.83 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 11.94 |
| Country of Origin | US |
| Product | Model | End One Coupler Size | End Two Coupler Size | Inside Dia. | Length | Oil Capacity | Price | |
|---|---|---|---|---|---|---|---|---|
 |
H9206Q | 1/4" | 1/4" | 0.25" | 6 ft. | 3.54 cu. in. | €117.81 | |
 |
HA9206 | 3/8" | - | 0.25" | 6 ft. | 3.54 cu. in. | €186.12 | |
 |
HC9306 | 3/8" | - | 0.38" | 6 ft. | 8.16 cu. in. | €289.08 | |
|
HC9310 | 3/8" | - | 0.38" | 10 ft. | 13.61 cu. in. | €431.64 | |
 |
HC9320 | - | - | - | 20 ft. | - | €550.44 | |
|
HC9206 | 3/8" | - | 0.25" | 6 ft. | 3.54 cu. in. | €240.25 | |
|
H9202 | 3/8" | 3/8" | 0.25" | 2 ft. | 1.18 cu. in. | €89.10 |
