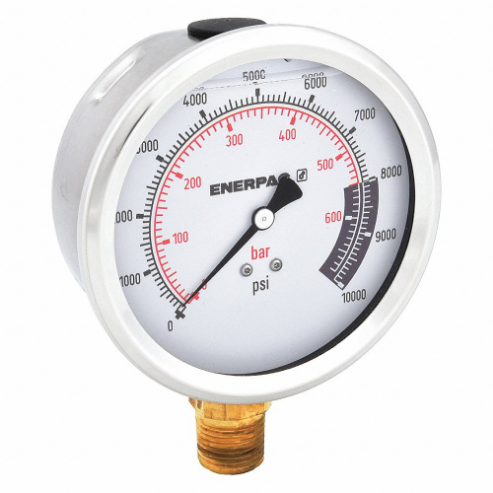

ENERPAC G4039L Pressure Gauge 0 To 10000 Psi 4 Inch 1/2in
Get it by Thursday, Jun 19
€444.51 /unit
Add To Cart
Request a Quote
Payment
Get it by Thursday, Jun 19
Payment
| Item | Pressure Gauge |
| Accuracy | -1% to +1% , 1% |
| Accuracy Scale | Full Scale |
| Application | General Purpose , Hydraulics |
| Basic Gauge Case Material | Stainless Steel |
| Blowout Safety Back | Yes |
| Calibration Certificate Included | No |
| Case Depth | 1.93" |
| Case Dia. | 4" |
| Color | Silver |
| Compatible Brand And Series | Enerpac V-91 |
| Compatible Manufacturer Model Number | V-91 |
| Connection Location | Lower |
| Dimension A | 4" |
| Dimension B | 1.93" |
| Field Fillable | No |
| For Use With | All Cylinders |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | Glycerin |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/2" |
| Gauge Filled With | Glycerin |
| Gauge Mounting Method | Lower Mount |
| Gauge Nominal Dial Size | 4" |
| Gauge Panel Mountable | No |
| Gauge Primary Range Units | Psi |
| Gauge Type | Liquid Filled |
| Hazardous Location Rating | Not Rated |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Glass |
| Liquid Filled | Yes |
| Liquid-filled Case | Yes |
| Major Graduation | 1000 psi |
| Manufacturer Warranty Length | Limited Lifetime |
| Max. Operating Pressure | 10000 psi |
| Mounting Hardware Included | No |
| Mounting Type | Lower Mount |
| Nominal Dial Size | 4" |
| Panel-mountable | No |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Range Type | Pressure |
| Primary Scale Units | Psi |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/2" |
| Promotion Restriction | Not Eligible For Promotion |
| Removable Bezel | No |
| Requires Adapter | Yes |
| Scale Type | Dual |
| Secondary Pressure Range | 0 psi to 700 psi |
| Secondary Scale Units | Bar |
| Smallest Graduation | 100 psi |
| Style | Glycerine Filled |
| Thread Dia. | 1/2" |
| Thread Type | NPTF |
| Ship weight (kg) | 0.9 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 11.43 |
| HS code | 9026208000 |
| Country of Origin | CN |
| Product | Model | Accuracy | Dimension A | Dimension B | Dimension C | Dimension D | Major Graduation | Max. Operating Pressure | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
G2536L | 1.5% | 2.5" | 1.46" | 1/4" NPTF | 3.31" | 3000 psi | 15000 psi | Lower Mount | €338.78 | |
 |
G4089L | 1% | 4" | 1.15" | 1/4" NPTF | 4.8" | 3000 psi | 15000 psi | Lower Mount | €384.12 | |
 |
G2535L | 1.5% | 2.5" | 1.46" | 1/4" NPTF | 3.31" | 2000 psi | 10000 psi | Lower Mount | €248.66 | |
 |
G4088L | 1% | 4" | 1.15" | 1/4" NPTF | 4.8" | 1000 psi | 10000 psi | Lower Mount | €338.58 | |
 |
G2512L | 1.5% | 2.5" | 1.46" | 1/4" NPTF | 3.31" | 50 psi | 300 psi | Lower Mount | €130.68 | |
 |
G2513L | 1.5% | 2.5" | 1.46" | 1/4" NPTF | 3.31" | 100 psi | 600 psi | Lower Mount | €130.68 | |
 |
G2514L | 1.5% | 2.5" | 1.46" | 1/4" NPTF | 3.31" | 100 psi | 1000 psi | Lower Mount | €140.58 |
