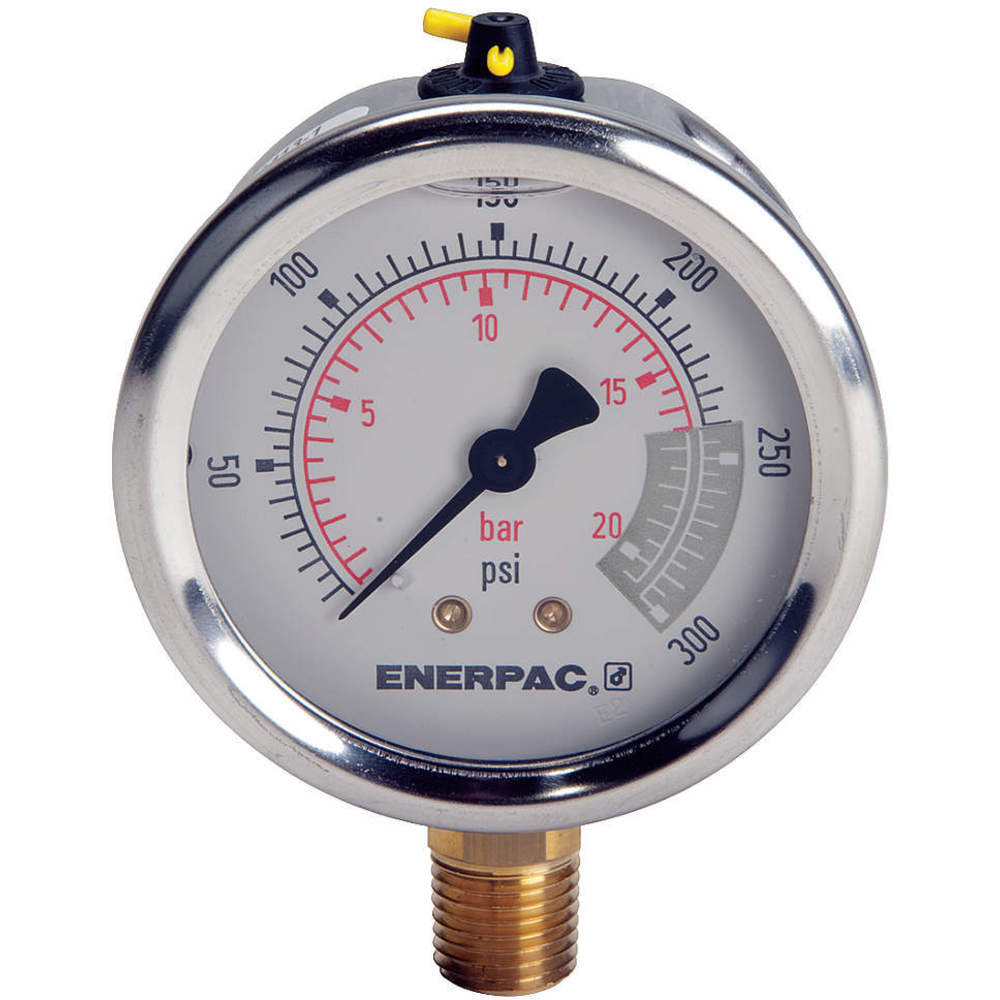

ENERPAC G2512L Hydraulic Pressure Gauge, 2.50 Inch Face, Glycerine Filled, 300 Max. Psi | AD6MRF 46C564

ENERPAC G2512L Hydraulic Pressure Gauge, 2.50 Inch Face, Glycerine Filled, 300 Max. Psi

Item: AD6MRFModel: G2512LCross Ref: 46C564
In Stock

Get it by Friday, Jun 20

€130.68 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

ItemPressure Gauge
Accuracy-1.5% to +1.5% , 1.50%
Accuracy ScaleFull Scale
ApplicationHigh Cycle , Hydraulics
Basic Gauge Case MaterialStainless Steel
Blowout Safety BackYes
Calibration Certificate IncludedNo
Case ColorMetallic , Silver
Case Depth1.46"
Case Dia.2 1/2"
Case MaterialStainless Steel
ColorSilver
Connection LocationLower
Dimension A2 1/2"
Dimension D3.31"
Field FillableNo
For Use WithHydraulics
Freeze Resistant MovementNo
Gauge Case LiquidGlycerin
Gauge Connection LocationBottom
Gauge Connection Size1/4"
Gauge Filled WithGlycerin
Gauge Mounting MethodLower Mount
Gauge Nominal Dial Size2 1/2"
Gauge Panel MountableNo
Gauge Primary Range UnitsPsi
Gauge TypeLiquid Filled
Hazardous Location RatingNot Rated
Includes Vent PlugNo
Ip Rating, Nema RatingNot Rated
Lens MaterialGlass
Liquid FilledYes
Liquid-filled CaseYes
Major Graduation50 psi
Max. Operating Pressure300 psi
Mounting Hardware IncludedNo
Mounting TypeLower Mount
Nominal Dial Size2 1/2"
Panel-mountableNo
Pressure And Vacuum Gauge TypePressure Gauge
Pressure Range TypePressure
Primary Pressure Range0 psi to 300 psi
Primary Scale Minor Graduations5
Primary Scale UnitsPsi
Process Connection GenderMale
Process Connection LocationBottom
Process Connection Size1/4"
Promotion RestrictionNot Eligible For Promotion
Range0 psi to 300 psi
Removable BezelNo
Requires AdapterYes
Scale TypeDual
Secondary Pressure Range0 psi to 20 psi
Secondary Scale UnitsBar
Smallest Graduation5 psi
StyleGlycerine Filled
Thread Dia.1/4"
Thread TypeNPTF
Adjustable PointerNo
Case ConstructionCorrosion Resistant
Case Diameter2.5"
Compatible Brand And SeriesENERPAC FM-25NG, Enerpac NV-251
Compatible Gauge AdapterEnerpac GA-3
Compatible Grainger Part Number30W697, 30X062
Compatible Manufacturer Model NumberFM-25NG, NV-251
Dial ColorWhite
Gauge Lens MaterialGlass
Graduations5 psi x 0.05 Bar
Hydraulic Pressure Gauge TypeDial Pressure Gauge for Hydraulic Systems
IncludesPressure Equalizing Membrane, Safety Blow Out Disk
Includes Mounting HardwareNo
Ip/nema RatingNot Rated
Pressure Gauge TypeHydraulic Cylinder Pressure Gauge
Pressure Range0 psi to 300 psi
Primary Range0 psi to 300 psi
Primary UnitsPsi
Process Connection1/4" NPTF Male
Process Connection TypeNPTF
Secondary Range0 Bar to 20 Bar
Secondary Scale Minor Graduations0.05
Secondary UnitsBar
SeriesG
Socket Material303 Stainless Steel
Vibration ResistanceLiquid Filled

Shipping Info:

Ship weight (kg) 0.23
Ship height (cm)4.57
Ship length (cm)9.4
Ship width (cm)7.87
HS code9026208000
Country of OriginCN

Product Details:

    • Required Gauge Adapter (Enerpac GA-3)

Product Variants

ProductModelAccuracyDimension ADimension BDimension CDimension DMajor GraduationMax. Operating PressureMounting TypePrice
ENERPAC G2536L Hydraulic Pressure Gauge, 2.50 Inch Face, Glycerine Filled, 15,000 Max. Psi | AA8KTG 18Y527 G2536L1.5%2.5"1.46"1/4" NPTF3.31"3000 psi15000 psiLower Mount€338.78
ENERPAC G4089L Hydraulic Pressure Gauge, 4 Inch Face, Glycerine Filled, 15000 Max. Psi | AA8KTH 18Y528 G4089L1%4"1.15"1/4" NPTF4.8"3000 psi15000 psiLower Mount€384.12
ENERPAC G2535L Hydraulic Pressure Gauge, 2.50 Inch Face, Glycerine Filled, 10000 Max. Psi | AC9UKJ 3KD57 G2535L1.5%2.5"1.46"1/4" NPTF3.31"2000 psi10000 psiLower Mount€248.66
ENERPAC G4088L Hydraulic Pressure Gauge, 4 Inch Face, Glycerine Filled, 10000 Max. Psi | AC9UKK 3KD59 G4088L1%4"1.15"1/4" NPTF4.8"1000 psi10000 psiLower Mount€338.58
ENERPAC G2513L Hydraulic Pressure Gauge, 2.50 Inch Face, Glycerine Filled, 600 Max. Psi | AD6MRG 46C565 G2513L1.5%2.5"1.46"1/4" NPTF3.31"100 psi600 psiLower Mount€130.68
ENERPAC G2514L Hydraulic Pressure Gauge, 2.50 Inch Face, Glycerine Filled, 1000 Max. Psi | AD6MRH 46C566 G2514L1.5%2.5"1.46"1/4" NPTF3.31"100 psi1000 psiLower Mount€140.58
ENERPAC G2516L Hydraulic Pressure Gauge, 2.50 Inch Face, Glycerine Filled, 3000 Max. Psi | AD6MRJ 46C567 G2516L1.5%2.5"1.46"1/4" NPTF3.31"500 psi3000 psiLower Mount€269.32
