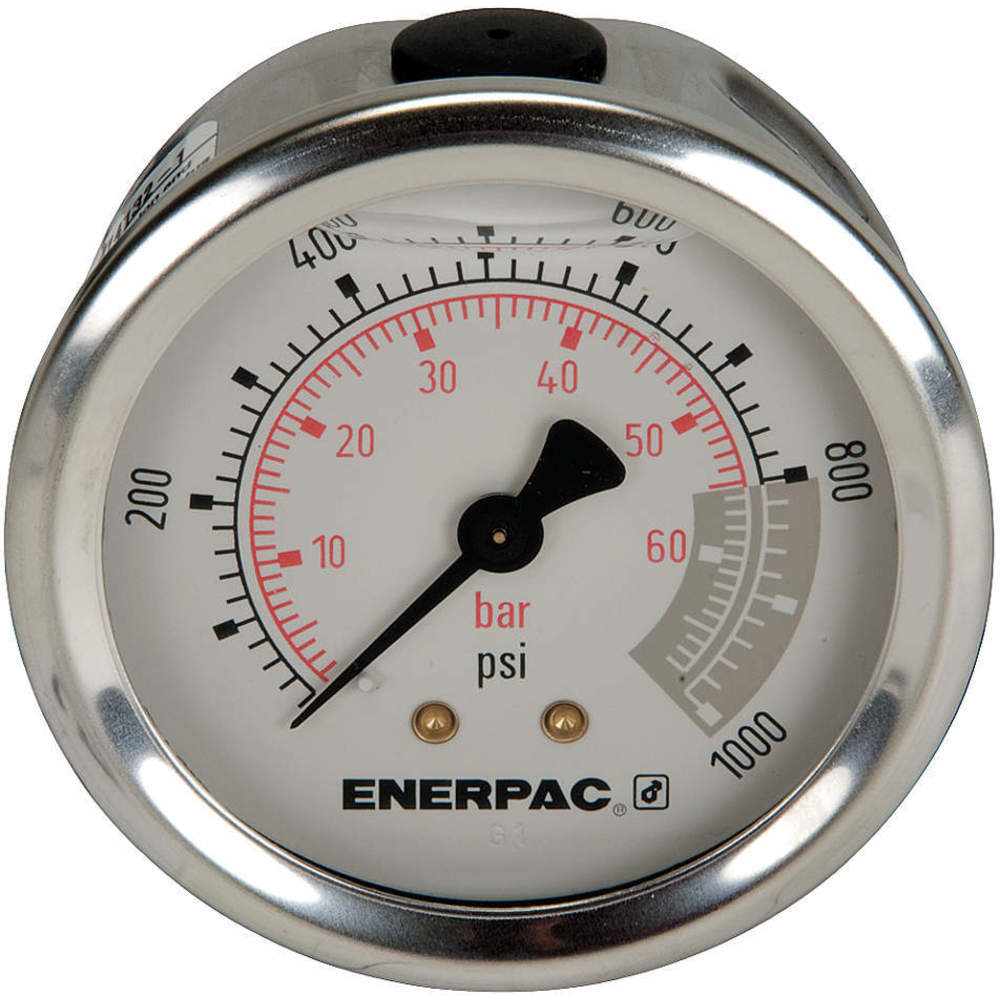

ENERPAC G2531R Hydraulic Pressure Gauge, 2.50 Inch Face, Glycerine Filled, 1000 Max. Psi
Get it by Tuesday, Jun 17
€143.55 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Pressure Gauge |
| Accuracy | -1.5% to +1.5% , 1.5% |
| Accuracy Scale | Full Scale |
| Application | High Cycle , Hydraulics |
| Basic Gauge Case Material | Stainless Steel |
| Blowout Safety Back | Yes |
| Calibration Certificate Included | No |
| Case Color | Metallic , Silver |
| Case Depth | 1.46" |
| Case Dia. | 2 1/2" |
| Case Material | Stainless Steel |
| Color | Silver |
| Connection Location | Back , Center Back |
| Dimension A | 2 1/2" |
| Dimension E | 2 12/25" |
| Field Fillable | No |
| For Use With | Hydraulics |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | Glycerin |
| Gauge Connection Location | Center Back |
| Gauge Connection Size | 1/4" |
| Gauge Filled With | Glycerin |
| Gauge Mounting Method | Center Rear |
| Gauge Nominal Dial Size | 2 1/2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range Units | Psi |
| Gauge Type | Liquid Filled |
| Hazardous Location Rating | Not Rated |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Glass |
| Liquid Filled | Yes |
| Liquid-filled Case | Yes |
| Major Graduation | 100 psi |
| Max. Operating Pressure | 1000 psi |
| Mounting Hardware Included | No |
| Mounting Type | Center Rear |
| Nominal Dial Size | 2 1/2" |
| Panel-mountable | No |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Range Type | Pressure |
| Primary Scale Units | Psi |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/4" |
| Promotion Restriction | Not Eligible For Promotion |
| Range | 0 psi to 1000 psi |
| Removable Bezel | No |
| Requires Adapter | Yes |
| Scale Type | Dual |
| Secondary Pressure Range | 0 psi to 70 psi |
| Secondary Scale Units | Bar |
| Sensor Material | Copper Alloy |
| Sensor Type | Bourdon Tube |
| Smallest Graduation | 20 psi |
| Style | Glycerine Filled |
| Thread Dia. | 1/4" |
| Thread Type | NPTF |
| Adjustable Pointer | No |
| Case Construction | Corrosion Resistant |
| Case Diameter | 2.5" |
| Compatible Brand And Series | ENERPAC FM-25NG, Enerpac NV-251 |
| Compatible Gauge Adapter | Enerpac GA-3 |
| Compatible Grainger Part Number | 30W697, 30X062 |
| Compatible Manufacturer Model Number | FM-25NG, NV-251 |
| Dial Color | White |
| Gauge Lens Material | Glass |
| Gauge Wetted Parts | Stainless Steel/Copper |
| Graduations | 20 psi x 1 Bar |
| Hydraulic Pressure Gauge Type | Dial Pressure Gauge for Hydraulic Systems |
| Includes | Pressure Equalizing Membrane, Safety Blow Out Disk |
| Includes Mounting Hardware | No |
| Ip/nema Rating | Not Rated |
| Pressure Gauge Type | Hydraulic Cylinder Pressure Gauge |
| Pressure Range | 0 psi to 1000 psi |
| Primary Range | 0 psi to 1000 psi |
| Primary Scale Minor Graduations | 20 |
| Primary Units | Psi |
| Process Connection | 1/4" NPTF Male |
| Process Connection Type | NPTF |
| Secondary Range | 0 Bar to 70 Bar |
| Secondary Scale Minor Graduations | 1 |
| Secondary Units | Bar |
| Series | G |
| Socket Material | 303 Stainless Steel |
| Vibration Resistance | Liquid Filled |
| Wetted Parts Material | 303 Stainless Steel, Copper Alloy |
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 7.87 |
| Ship width (cm) | 7.11 |
| HS code | 9026208000 |
| Country of Origin | CN |
| Product | Model | Accuracy | Dimension A | Dimension B | Dimension C | Dimension D | Major Graduation | Max. Operating Pressure | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
G2536L | 1.5% | 2.5" | 1.46" | 1/4" NPTF | 3.31" | 3000 psi | 15000 psi | Lower Mount | €338.78 | |
 |
G4089L | 1% | 4" | 1.15" | 1/4" NPTF | 4.8" | 3000 psi | 15000 psi | Lower Mount | €384.12 | |
 |
G2535L | 1.5% | 2.5" | 1.46" | 1/4" NPTF | 3.31" | 2000 psi | 10000 psi | Lower Mount | €248.66 | |
 |
G4088L | 1% | 4" | 1.15" | 1/4" NPTF | 4.8" | 1000 psi | 10000 psi | Lower Mount | €338.58 | |
 |
G2512L | 1.5% | 2.5" | 1.46" | 1/4" NPTF | 3.31" | 50 psi | 300 psi | Lower Mount | €130.68 | |
 |
G2513L | 1.5% | 2.5" | 1.46" | 1/4" NPTF | 3.31" | 100 psi | 600 psi | Lower Mount | €130.68 | |
 |
G2514L | 1.5% | 2.5" | 1.46" | 1/4" NPTF | 3.31" | 100 psi | 1000 psi | Lower Mount | €140.58 |
