Get it by May 16, Thursday
Not eligible for flat shipping. Flat shipping is available on order value €99,00 or more and aggregate weight below 10 pounds.
Payment Methods
Delivery Partners

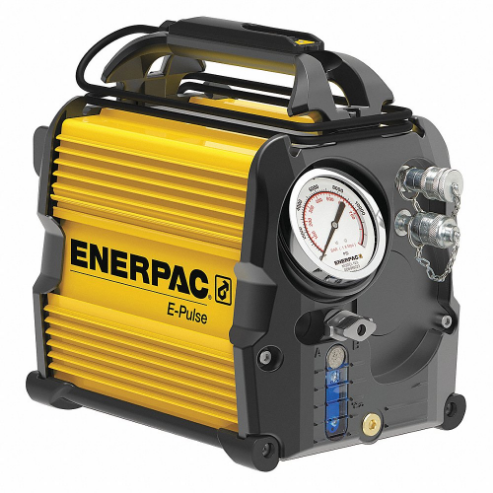

| Item | Hydraulic Electric Pump |
| Current Drawn | 12A |
| Dimension A | 10.2" |
| Dimension B | 14.2" |
| Dimension C | 15.8" |
| Duty Cycle | Extended |
| Max. Flow at Rated Pressure | 32 cu. in./min. |
| Max. Operating Pressure | 10000 psi |
| Motor HP | 0.85 hp |
| Number of Wrenches Pump can Operate | 1 |
| Output Flow Rate @ 14.5 psi | 220 cu. in./min. |
| Output Flow Rate @ 2538 psi | 130 cu. in./min. |
| Output Flow Rate @ 5075 psi | 58 cu. in./min. |
| Output Flow Rate at 14.5 psi | 220 cu. in./min. |
| Output Flow Rate Load | 32 cu. in./min. |
| Output Flow Rate No Load | 220 cu. in./min. |
| Power Source | Electric |
| Product Datasheet | enerpac-ep3104db-g.pdf |
| Reservoir Capacity | 185 cu. in. |
| Sound Level | 70 to 85 dBA |
| Usable Oil Capacity | 0.8 gal. |
| Valve Operation | Solenoid |
| Valve Type | 4-Way, 2-Position |
| Voltage | 100 to 120V |
| Ship weight (kg) | 22.48 |
| Country of Origin | USA |
| Model | Cylinder Compatibility | Dimension C | Valve Operation | Valve Type | Price | |
|---|---|---|---|---|---|---|
| EP3104DB-G | Single Acting | 14" | Solenoid | 3-Way, 2-Position | €8,991.32 | |
| EP3204JB-G | Single Acting | 15.2" | Manual | 3-Way, 2-Position | €7,988.57 | |
| EP3404JB-G | Double Acting | 15.2" | Manual | 4-Way, 3-Position | €8,807.16 | |
| EP3504TBM | - | - | - | - | €18,327.27 |
