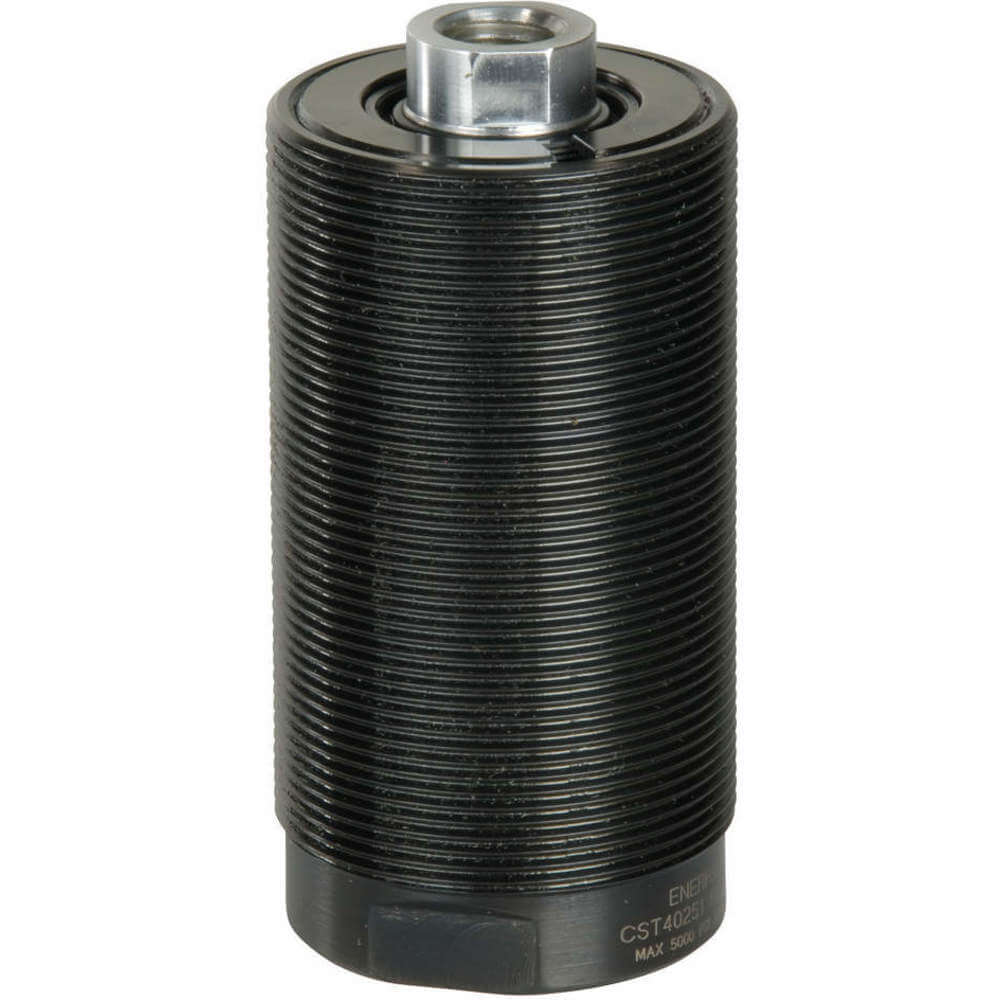

ENERPAC CST40251 Cylinder Threaded 8800 Lb 0.98 Inch Stroke

Item: AE6TCEModel: CST40251Cross Ref: 5UWR7

See variants (12)

In Stock

Get it by Tuesday, Jun 17

€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€420.85 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Hydraulic Cylinder
Dimension A	4.78"
Dimension B	3.73"
Dimension C	3 12/25"
Dimension C1	0.43"
Dimension D1	1.79"
Dimension E	0.78"
Dimension E1	3/4"
Dimension F	1.63"
Dimension P	0.31"
Dimension S	0.67"
Dimension T	0.47"
Function	Single Acting
Material	Steel
Max. Cylinder Capacity Advance	8800 lbs.
Max. Operating Pressure	5000 psi
Plunger Type	Solid
Pressure Range	580 psi to 5000 psi
Seal Material	Buna N, Polyurethane
Stroke	0.98"
Type	Threaded Body
Body Material	Steel
Body Thread	1 7/8"-16
Cylinder Type	Threaded Body
Effective Push Area	1.76 sq. in.
Extended Height	4.76"
Mounting Style	Threaded Body
Oil Capacity Push	1.73 cu. in.
Outside Dia.	1.875"
Plunger Thread Size	1/2"-13
Push Capacity @ 5000 Psi	8800 lbf.
Retracted Height	3.73"
Single Acting/double Acting	Single Acting
Stroke Length	1"

Shipping Info:

Ship weight (kg)	1.04
Ship height (cm)	9.47
Ship length (cm)	4.76
Ship width (cm)	4.76
HS code	8412210030
Country of Origin	US

Product Details:

Capacity @ 5000 PSI (8800 lb.)
Effective Area Push (1.76 sq. in.)
Plunger Thread (1/2"-13 UN)

Product Variants

Model	Cylinder Effective Area Advance	Dimension A	Dimension B	Dimension C	Dimension C1	Dimension D	Dimension D1	Dimension E	Price
CST271	-	-	-	-	-	-	-	-	€139.59
CST2131	-	-	-	-	-	-	-	-	€172.26
CST471	-	-	-	-	-	-	-	-	€146.52
CST4131	0.2 sq. in.	2.71"	2.21"	2.05"	0.37"	3/4"-16 UNF	0.69"	0.27"	€167.31
CST971	0.39 sq. in.	2.54"	2.26"	2.03"	0.32"	1"-12 UNF	0.88"	0.39"	€226.71
CST9131	0.39 sq. in.	3.02"	2.5"	2.28"	0.32"	1"-12 UNF	0.88"	0.39"	€199.98
CST9251	0.39 sq. in.	4.46"	3.42"	3.21"	0.32"	1"-12 UNF	0.88"	0.39"	€210.87
