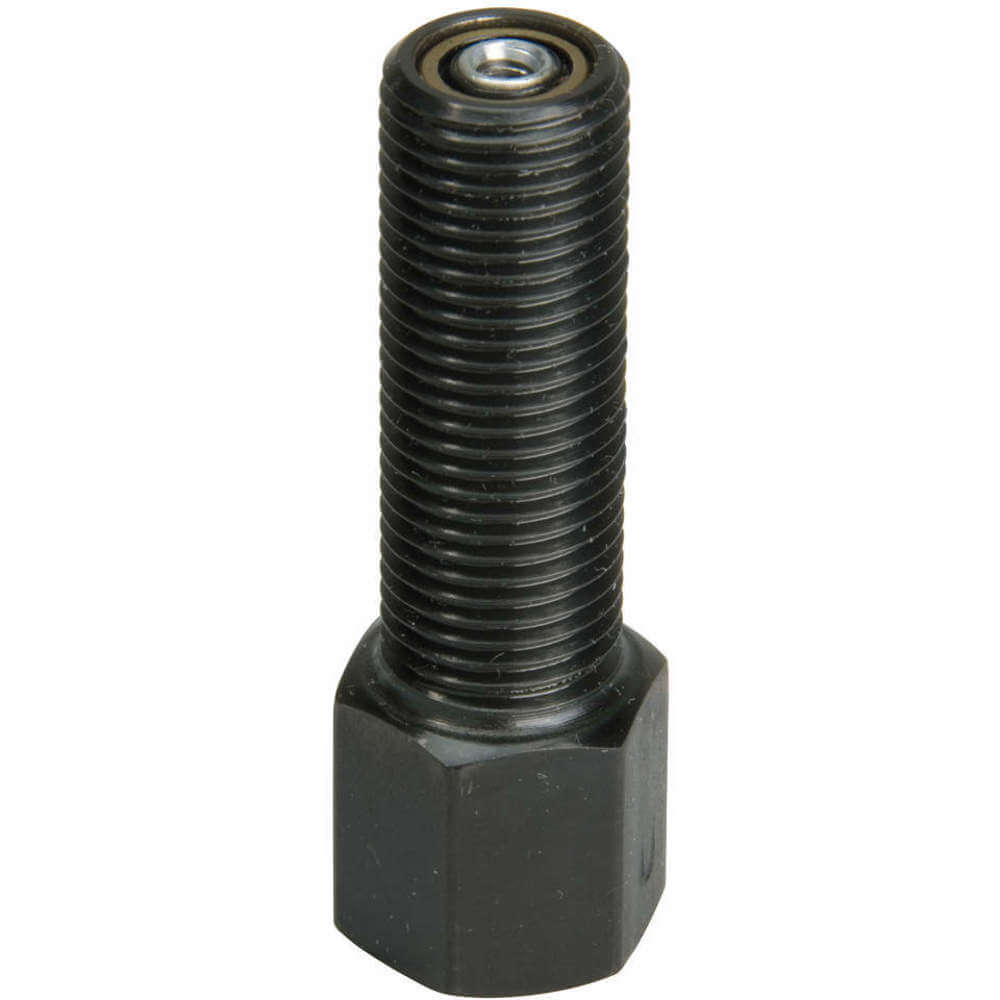

ENERPAC CST2131 Cylinder Threaded 380 Lb 0.51 Inch Stroke
Get it by Tuesday, Jun 17
€172.26 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hydraulic Cylinder |
| Material | Steel |
| Outside Dia. | 1/2" |
| Pressure Range | 580 psi to 5000 psi |
| Retracted Height | 2.03" |
| Seal Material | Buna N, Polyurethane |
| Stroke | 0.51" |
| Body Material | Steel |
| Body Thread | 1/2"-20 |
| Cylinder Type | Threaded Body |
| Effective Push Area | 0.08 sq. in. |
| Extended Height | 2.55" |
| Mounting Style | Threaded Body |
| Oil Capacity Push | 0.04 cu. in. |
| Plunger Thread Size | #6-32 |
| Push Capacity @ 5000 Psi | 380 lbf. |
| Single Acting/double Acting | Single Acting |
| Stroke Length | 1/2" |
| Ship weight (kg) | 0.19 |
| Ship height (cm) | 9.14 |
| Ship length (cm) | 11.68 |
| Ship width (cm) | 11.68 |
| HS code | 8412210030 |
| Country of Origin | US |
| Product | Model | Cylinder Effective Area Advance | Dimension A | Dimension B | Dimension C | Dimension C1 | Dimension D | Dimension D1 | Dimension E | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CST271 | - | - | - | - | - | - | - | - | €139.59 | |
 |
CST471 | - | - | - | - | - | - | - | - | €146.52 | |
 |
CST4131 | 0.2 sq. in. | 2.71" | 2.21" | 2.05" | 0.37" | 3/4"-16 UNF | 0.69" | 0.27" | €167.31 | |
 |
CST971 | 0.39 sq. in. | 2.54" | 2.26" | 2.03" | 0.32" | 1"-12 UNF | 0.88" | 0.39" | €226.71 | |
 |
CST9131 | 0.39 sq. in. | 3.02" | 2.5" | 2.28" | 0.32" | 1"-12 UNF | 0.88" | 0.39" | €199.98 | |
 |
CST9251 | 0.39 sq. in. | 4.46" | 3.42" | 3.21" | 0.32" | 1"-12 UNF | 0.88" | 0.39" | €210.87 | |
 |
CST18131 | 0.79 sq. in. | 3.26" | 2.75" | 2.5" | 0.49" | 1 1/3"-16 UN | 1.22" | 0.63" | €220.77 |
