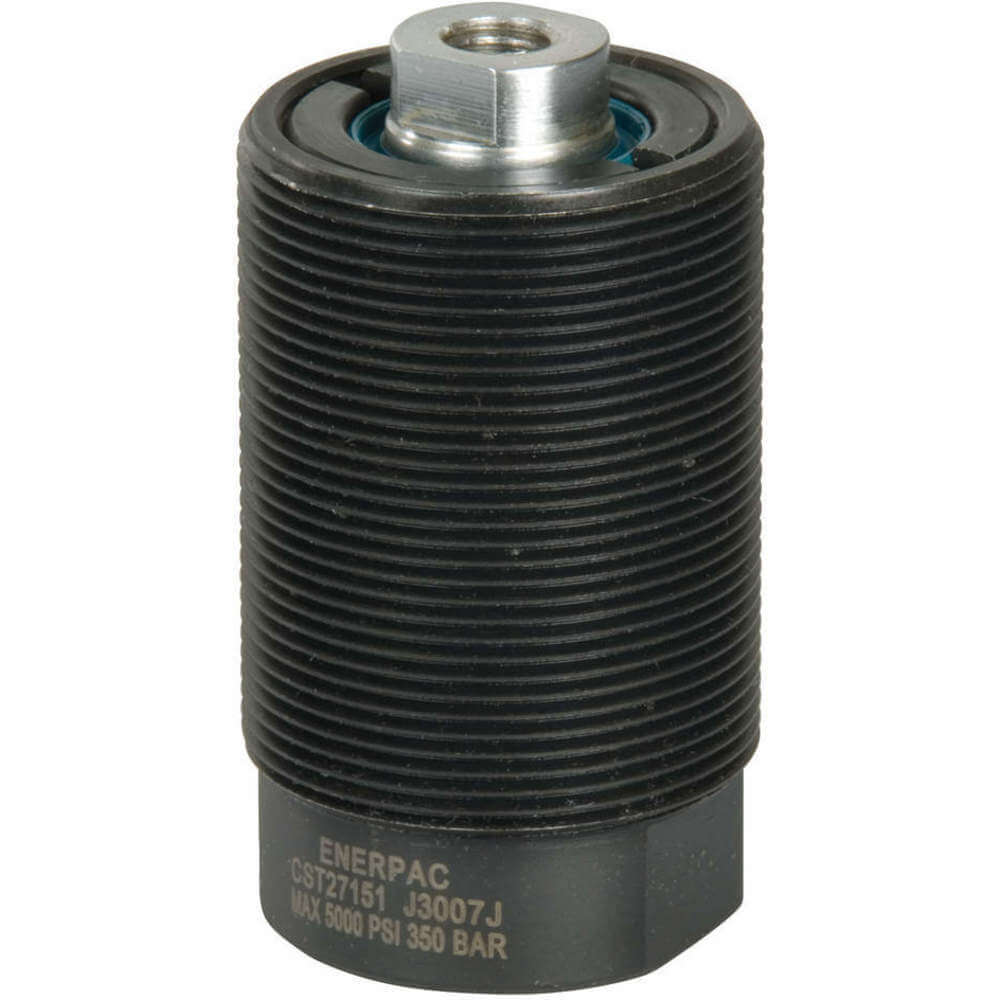

ENERPAC CST27151 Cylinder Threaded 6110 Lb 0.59 Inch Stroke
Get it by Tuesday, Jun 17
€270.27 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hydraulic Cylinder |
| Dimension A | 3.46" |
| Dimension B | 2.87" |
| Dimension D1 | 1 13/25" |
| Dimension E | 0.71" |
| Dimension E1 | 0.67" |
| Dimension F | 1.38" |
| Dimension P | 0.26" |
| Dimension S | 0.57" |
| Dimension T | 0.47" |
| Function | Single Acting |
| Material | Steel |
| Max. Cylinder Capacity Advance | 6110 lbs. |
| Max. Operating Pressure | 5000 psi |
| Plunger Type | Solid |
| Pressure Range | 580 psi to 5000 psi |
| Seal Material | Buna N, Polyurethane |
| Stroke | 0.59" |
| Type | Threaded Body |
| Body Material | Steel |
| Body Thread | 1 5/8"-16 |
| Cylinder Type | Threaded Body |
| Effective Push Area | 1.22 sq. in. |
| Extended Height | 3.46" |
| Mounting Style | Threaded Body |
| Oil Capacity Push | 0.72 cu. in. |
| Outside Dia. | 1.625" |
| Plunger Thread Size | 3/8"-16 |
| Push Capacity @ 5000 Psi | 6110 lbf. |
| Retracted Height | 2.87" |
| Single Acting/double Acting | Single Acting |
| Stroke Length | 1/2" |
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 6.86 |
| Ship length (cm) | 17.02 |
| Ship width (cm) | 7.87 |
| HS code | 8412210030 |
| Country of Origin | US |
| Product | Model | Cylinder Effective Area Advance | Dimension A | Dimension B | Dimension C | Dimension C1 | Dimension D | Dimension D1 | Dimension E | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CST271 | - | - | - | - | - | - | - | - | €139.59 | |
 |
CST2131 | - | - | - | - | - | - | - | - | €172.26 | |
 |
CST471 | - | - | - | - | - | - | - | - | €146.52 | |
 |
CST4131 | 0.2 sq. in. | 2.71" | 2.21" | 2.05" | 0.37" | 3/4"-16 UNF | 0.69" | 0.27" | €167.31 | |
 |
CST971 | 0.39 sq. in. | 2.54" | 2.26" | 2.03" | 0.32" | 1"-12 UNF | 0.88" | 0.39" | €226.71 | |
 |
CST9131 | 0.39 sq. in. | 3.02" | 2.5" | 2.28" | 0.32" | 1"-12 UNF | 0.88" | 0.39" | €199.98 | |
 |
CST9251 | 0.39 sq. in. | 4.46" | 3.42" | 3.21" | 0.32" | 1"-12 UNF | 0.88" | 0.39" | €210.87 |
