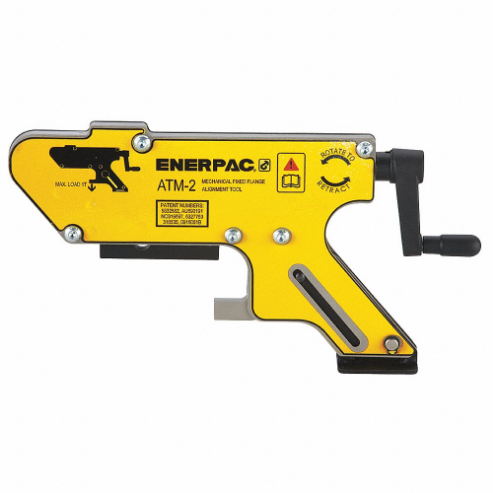

ENERPAC ATM2 Flange Alignment Tool, 1 Ton
Get it by Tuesday, Jun 17
€2,082.96 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Flange Alignment Tool |
| Flange Thickness | 0.55" to 3.29" |
| Force | 1 ton. |
| Max. Reaction Force | 1 ton. |
| Min. Bolt Size | 0.63" |
| Overall Width | 1 1/2" |
| Features | Correct Flange Misalignment and Place Bolts, for Use with Most Ansi, Api, Bs and Din Flanges, Install and Use Vertically or Horizontally, No Slings, Hooks or Lifting Gear Required, Rectify Twist and Rotational Misalignment |
| Includes | Kit Box |
| Maximum Flange Capacity | 1 ton. |
| Maximum Flange Thickness | 3 5/16" |
| Minimum Bolt Diameter | 5/8" |
| Minimum Flange Thickness | 9/16" |
| Product Type | Manual Flange Alignment Tool |
| Spread | 3" |
| Tool Height | 7 5/8" |
| Tool Length | 11 1/2" |
| Tool Series | ATM |
| Tool Weight | 4 lbs. |
| Tool Width | 1 1/2" |
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 19.3 |
| Ship length (cm) | 29.21 |
| Ship width (cm) | 69.01 |
| Country of Origin | UK |
