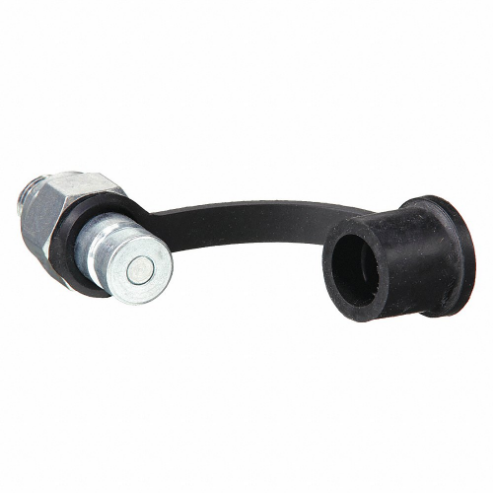

ENERPAC AH654 Regular Hydraulic Coupler, Male Half
Get it by Wednesday, Jun 18
€70.29 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Hydraulic Coupler |
| Anatomy | Male Half |
| Body Material | Steel |
| Coupler Body Material | Steel |
| Coupler Finish | Chrome Plated |
| Coupling Component | Plug |
| Finish | Bright |
| Finish/coating | Zinc Plated |
| Flow Rate | 4 GPM |
| For Use With | Hydraulic Systems |
| Hose Fitting Gender | Male |
| Includes Bearing | No |
| Includes Shut Off | Yes |
| Includes Valve | Yes |
| Locking Mechanism | Ball Detent |
| Max. Operating Pressure | 5000 psi |
| Max. Pressure | 5000 psi |
| Quick Coupler Type | Hydraulic Coupler Nipple |
| Seal Material | Nitrile |
| Sleeve Material | Steel |
| Temp. Range | -40°F to +250°F |
| Thread Dia. | 1/4" |
| Type | Male Half |
| Valve Type | Flush Face |
| Connection Type | UNF |
| Coupling Locking Type | Push-to-Connect |
| Coupling Size | 1/4" |
| Fitting Type | Male UNF |
| Max. Flow Rate | 3.02 LPM |
| Max. Outside Dia. | 3/4" |
| Max. Working Pressure @ 70 F | 5000 psi |
| Overall Length | 1 5/8" |
| Parker Interchange | PD341 |
| Series | Regular Series |
| Thread Size | 7/16"-20 |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 10.16 |
| HS code | 8481803090 |
| Country of Origin | US |
