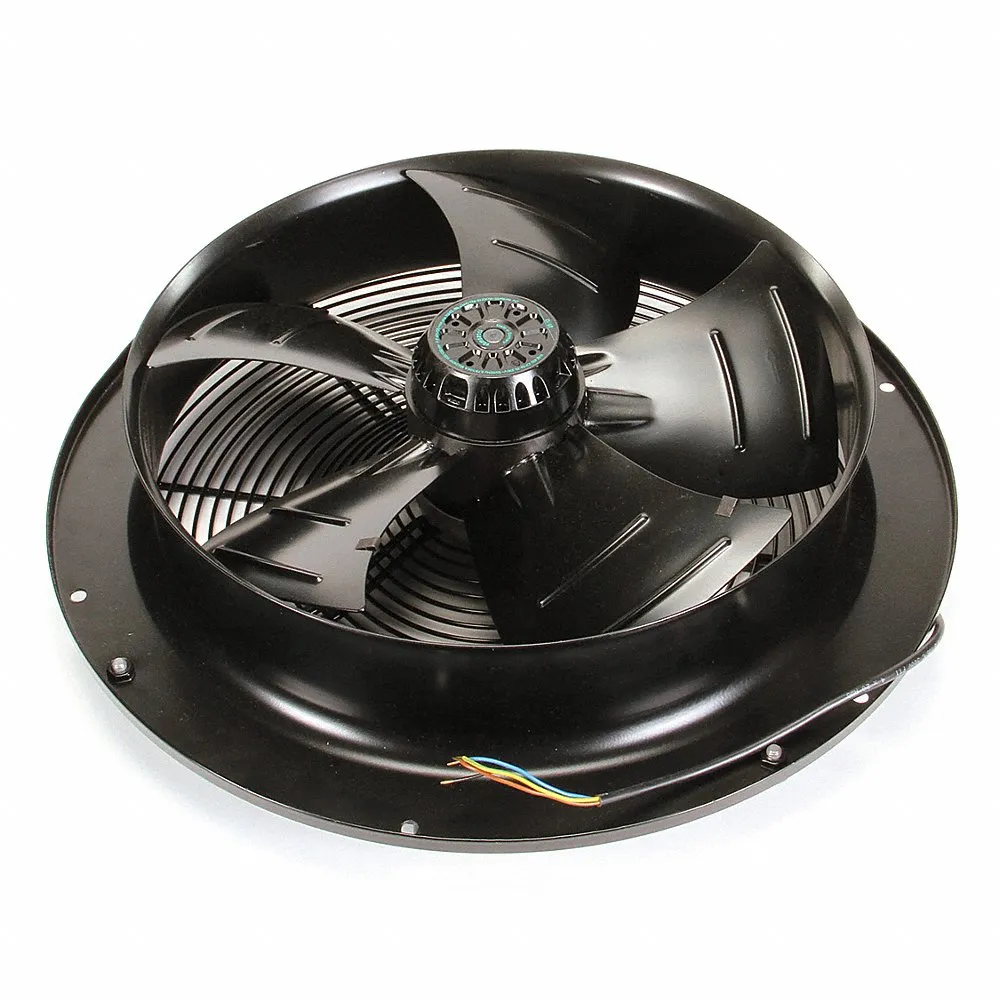

EBM-PAPST W4E400-CP02-70 Standard Round Axial Fan, 20 3/4 Inch Dia, 4 3/4 Inch Depth, 2910, IP44, Galvanized Steel
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Axial Fan |
| Amps | 1.1A |
| Bearing Type | Ball |
| Blade Material | Galvanized Steel |
| Cfm @ 0.000-in. Sp | 2910 CFM |
| Connection Type | Wire Leads |
| Depth | 4 3/4" |
| Diameter | 20 3/4" |
| Electrical Connection | Lead Wire |
| Environmental Applications | Equipment Cooling |
| Frequency | 50/60 Hz |
| Grill Position | Discharge |
| Gross Weight | 17.925 lbs. |
| Housing Material | Galvanized Steel |
| Impeller Material | Metallic |
| Includes | Discharge Grille |
| Ip Rating | IP44 |
| Max. Ambient Temp. | 104°F |
| Motor Insulation | Class B |
| Mounting Eye O.c. | 19 7/8" |
| Mounting Position | Vertical/Horizontal |
| Noise Level | 73 dB |
| Nominal Height | 400 mm |
| Nominal Voltage | 240V AC |
| Nominal Width | 400 mm |
| Operating Voltage | 230V AC |
| Power Consumption | 240 W |
| Requires | Run Capacitor 2MDY6, 5 MFD, 440V AC |
| Rpm | 1700 RPM |
| Shape | Round |
| Ships Factory Direct | No |
| Sound Level | 73 dBA |
| Tachometer Output | No |
| Thermal Protection | Thermally Protected |
| Voltage | 230V AC |
| Wattage | 240 W |
| Electrical Connection - Fans | Lead Wires |
| Fan Shape | Round |
| Hz | 50/60 Hz |
| Standards | UL AND C-UL RECOGNIZED AND ROHS COMPLIANT |
| Watts | 240 W |
| Ship weight (kg) | 10.23 |
