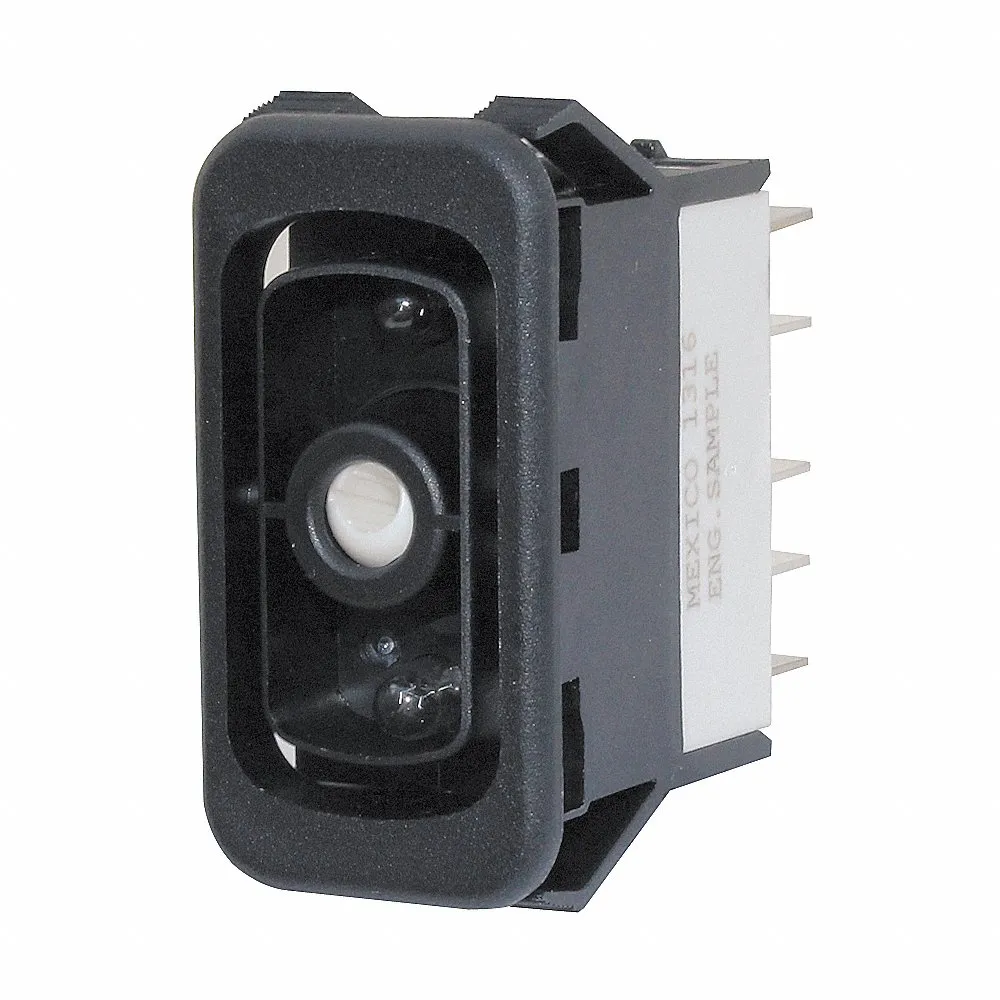

EATON NGR15061BNAAN Lighted Rocker Switch, Lighted Rocker Switch, SPST, Off/On, 6 Connections
€15.82 /unit
Request a Quote
Payment
Payment
| Item | Rocker Switch |
| Mounting Hole | 0.867" x 1.734" |
| Number Of Connections | 6 |
| Ac Contact Rating | 10A @ 250V,15A @ 125V |
| Contact Form | SPST |
| Dc Contact Rating | 15 A @ 28 V |
| Ip Rating | IP42 |
| Lamp Bulb Type | LED |
| Lamp Module Type | Full Voltage |
| Lamp Voltage - Maximum | 14V DC |
| Mounting Hole Length | 1.73" |
| Mounting Hole Width | 0.87" |
| Number Of Positions | 2 |
| Operating Temperature - Maximum | 185°F |
| Operating Temperature - Minimum | -40°F |
| Operator Illumination | Illuminated |
| Overall Depth | 2.25" |
| Overall Height | 1.97" |
| Overall Width | 1.02" |
| Product Type | Rocker Switch |
| Resistance Properties | Dust Resistant, Watertight |
| Series | NGR Series |
| Standards | CSA, ROHS, UL LISTED |
| Switch Action | Off/On |
| Terminal Connection Type | 0.25" Quick Connect Tab |
| Country of Origin | MX |
| Product | Model | Price | |
|---|---|---|---|
|
NGR25061BNAAN | €18.20 | RFQ
|
 |
NGR10031BN00N | €11.15 | |
|
NGR10051BN00N | €16.63 | |
 |
NGR15481BNAAN | €22.04 | |
|
NGR15681BNAAN | €21.82 | |
|
NGR20031BN00N | €19.98 | |
|
NGR25031BNA0N | €18.98 |
