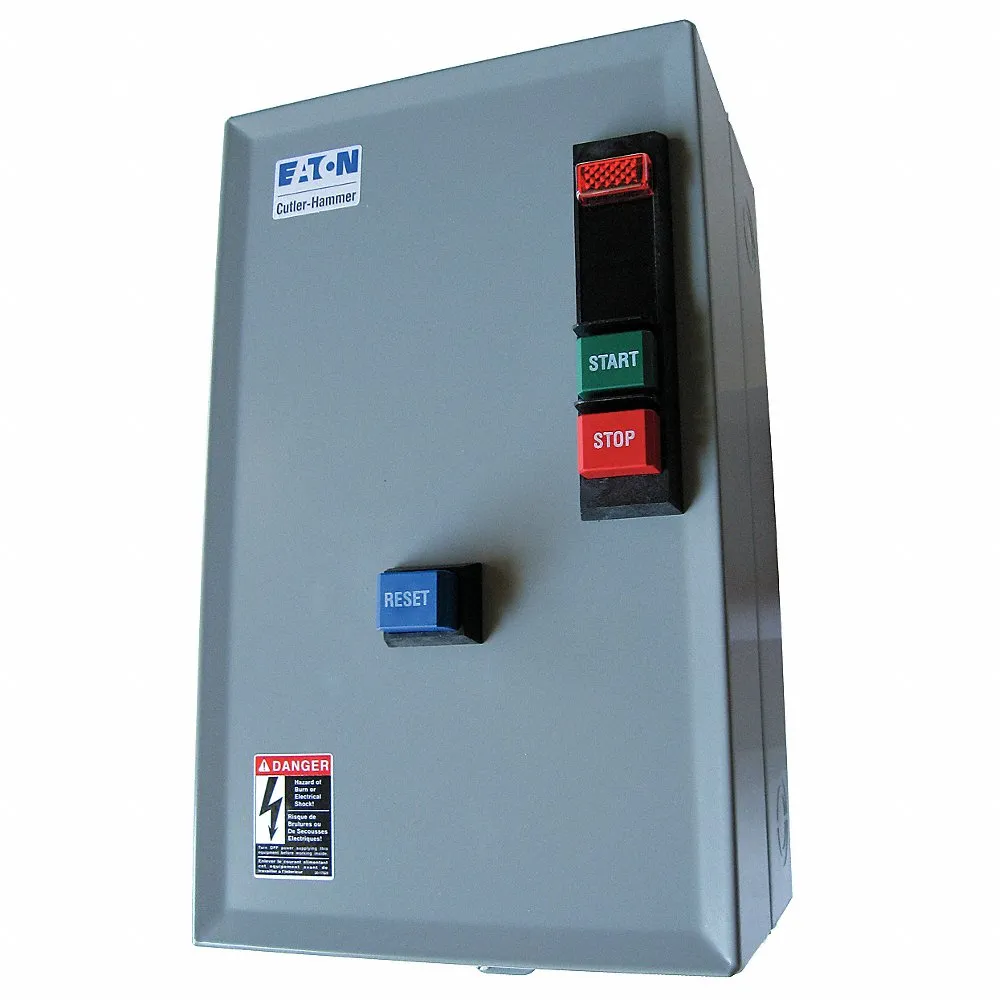

| Item | Magnetic Motor Starter |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage | 120V AC |
| Exterior Operator Controls | STOP/START Push Buttons |
| Frequency | 50/60 Hz |
| Horsepower @ Single Phase - 120v Ac | 1/2 hp |
| Horsepower @ Single Phase - 240v Ac | 1 1/2 hp |
| Horsepower @ Three Phase - 208v Ac | 2 hp |
| Horsepower @ Three Phase - 240v Ac | 2 hp |
| Horsepower @ Three Phase - 480v Ac | 5 hp |
| Horsepower @ Three Phase - 600v Ac | 7 1/2 hp |
| Includes Auxiliary Contacts | Yes |
| Ip Rating | IP23 |
| Max Current (ac) | 9A |
| Maximum Overload Relay Current Setting | 20A |
| Maximum Voltage Rating | 690V AC |
| Minimum Overload Relay Current Setting | 4A |
| Mounting Style | Surface |
| Nema Enclosure Rating | 1 |
| Nominal Coil Voltage @ 60hz | 120V AC |
| Number Of Poles | 3 |
| Overall Depth | 14" |
| Overall Height | 8 1/2" |
| Overall Width | 9" |
| Overload Protection Type | Electronic |
| Phase | Three |
| Pilot Lights Included | Red "RUN" Pilot Light |
| Reversing Capability | Non-Reversing |
| Series | XT Series |
| Standards | CUL LISTED, UL LISTED |
| Starter Style | IEC |
| Trip Class | 10A/10/20/30 |
| Ship weight (kg) | 4.68 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 22.86 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
ECX09G1AAA-R63/D | €947.72 | |
 |
ECN05A1BAA-R63/B | €764.85 | |
|
ECN05A1CAA-R63/C | €720.52 | |
|
ECX09G1CAA-R63/D | €947.72 | |
 |
ECX09C1CAA-R63/C | €705.62 | |
|
ECX09C1CAA-R63/A | €590.70 | |
|
ECX09H1CAA-R63/D | €998.65 |
