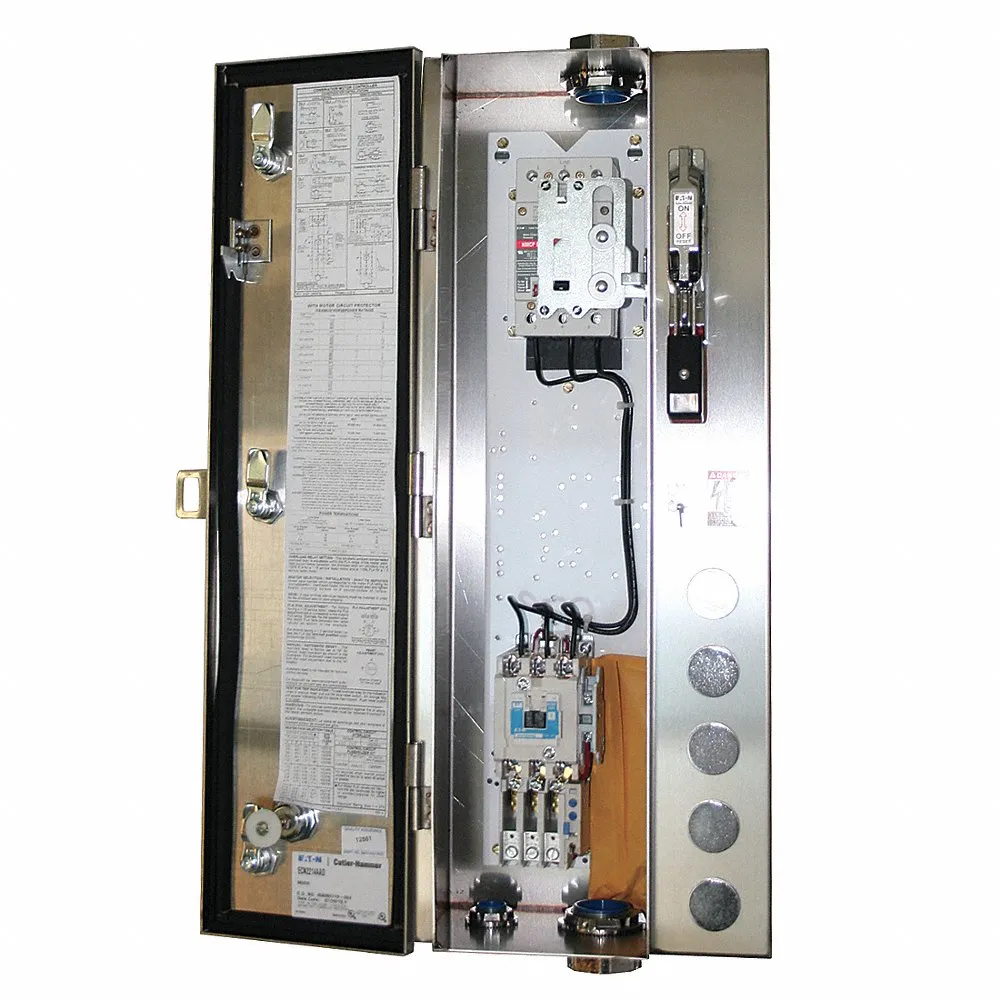

EATON ECN1604AAC-R63/C Fusible Combination Starter, 18A, 110/120V AC Coil Voltage
Get it by Tuesday, Jun 17
€3,657.78 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | NEMA Fusible Combination Starter |
| Auxiliary Contact Module Capacity | 4 |
| Circuit Breaker Rating | 7A |
| Control Transformer | No |
| Control Transformer Voltage | Not Applicable |
| Height | 11.1" |
| Horsepower @ Single Phase | Not Rated |
| Horsepower @ Single Phase - 120v Ac | Not Rated |
| Horsepower @ Three Phase - 208v Ac | 3 hp |
| Horsepower @ Three Phase - 600v Ac | 5 hp |
| Hp @ 3 Phase - 240v | 3 hp |
| Hp @ 3 Phase - 480v | 5 hp |
| Includes Auxiliary Contacts | Yes |
| Includes Control Transformer | No |
| Length | 30.7" |
| Max. Overload Relay Amps Setting | 20A |
| Minimum Overload Relay Current Setting | 4A |
| Mounting Postion | Horizontal, Vertical |
| No. Of Auxillary Contacts | 1 |
| No. Of Terminals | 3 |
| Number Of Poles | 3 |
| Operator | No |
| Overall Depth | 30.7" |
| Overall Height | 11.1" |
| Overall Width | 12 1/5" |
| Overload Protection Type | Electronic |
| Phase | 3 |
| Pilot Light | No |
| Resistance Properties | Impact Resistant, Tamper Resistant |
| Short Circuit Protection | Circuit Breaker |
| Terminal Connection Type | Screw Terminals |
| Thermal Unit Code | Not Applicable |
| Width | 12 1/5" |
| Auxiliary Contact Form | 1NO |
| Electrical Operating Durability | 100000 |
| Frequency | 50/60 Hz |
| Horsepower @ Single Phase - 240v Ac | Not Rated |
| Horsepower @ Three Phase - 240v Ac | 3 hp |
| Horsepower @ Three Phase - 480v Ac | 5 hp |
| Includes Pilot Light | No |
| Ip Rating | IP20 |
| Max Current (ac) | 18A |
| Maximum Overload Relay Current Setting | 20A |
| Maximum Voltage Rating | 600V AC |
| Mounting Style | Through Panel |
| Nema Enclosure Rating | 4X |
| Nema Size | 0 |
| Nominal Coil (secondary) Voltage | 120V AC |
| Number Of Terminals | 3 |
| Operator Type | No Operator |
| Reversing Capability | Non-Reversing |
| Series | Freedom Series |
| Standards | UL E1491 |
| Starter Style | NEMA |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Trip Class | Class 10, Class 20, Class 30 |
| Ul Fuse Class | R |
| Wire Termination Type | Screw |
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 28.19 |
| Ship length (cm) | 77.98 |
| Ship width (cm) | 30.99 |
| Country of Origin | US |
