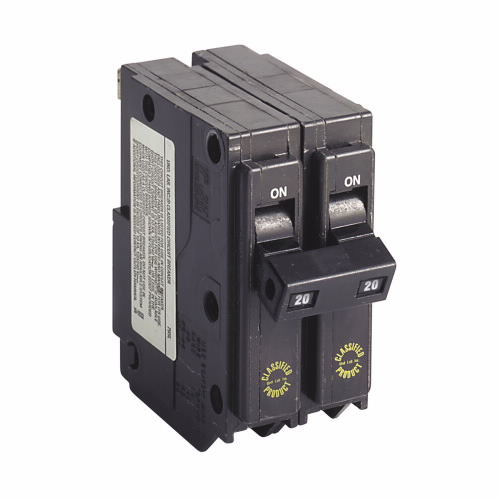

EATON CHQ220CS Thermal Magnetic Circuit Breaker, Type Chq, Clamshell Pack, 20 A, 2-Pole, 120/240 V
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Circuit Breaker |
| Amperage Rating | 20A |
| Circuit Breaker Type | CH |
| Features | Clamshell Pack |
| For Use With | Type CH Loadcenters |
| Height | 2 1/4" |
| Interrupt Rating | 10 kAIC |
| Length | 6" |
| Main Circuit Breaker | CHQ |
| Notes | Replacement For Square D Type QO Breakers. Requires One 3/4-Inch (19.1 Mm) Space. |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Trip Type | Common Breaker Trip |
| Type | Type CHQ 3/4-Inch Classified Replacement Breaker Clamshell Pack |
| Voltage | 120/240V |
| Width | 4" |
| Wire Size | #14 AWG to 10 AWG, #14 AWG to 8 AWG |
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 10.16 |
| Country of Origin | US |
