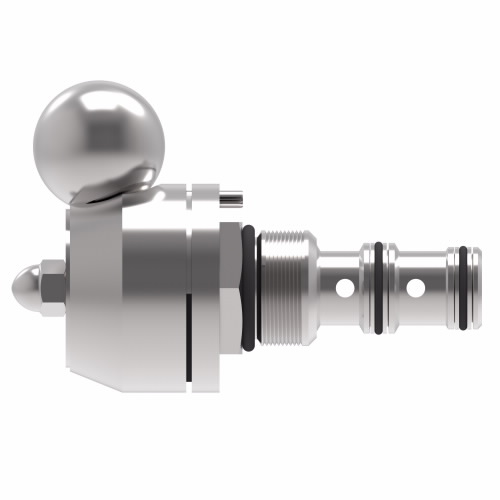

EATON 02-166110 Directional Control Valve Mrv3-10-E2-0
Get it by Tuesday, Jun 17
€201.07 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Control Valve |
| Actuation Option | None |
| Application | Harvesters, Refuse Haulers, Mobile And Industrial Applications |
| Cavity | C-10-3 |
| Detent Option | Yes |
| Features | None |
| Flow Rate | 23 LPM |
| Fluid Compatibility | All General Purpose Hydraulic Fluids Such As, MIL-H-5606, SAE 10, SAE 20 Etc |
| Function | Manual Semi-Rotary Directional Control Valve |
| Height | 1.65" |
| Housing | No |
| Installation Type | Screw In Cartridge |
| Leakage | Standard |
| Length | 3.26" |
| Lever Position | 90Aa Angle Position |
| Number Of Housing Ports | 3 |
| Number Of Valve Ports | 3 |
| Operating Temp. | -40°C to +120°C |
| Operation | Direct Acting |
| Port Type | Cartridge Only |
| Pressure Rating | 210 Bar |
| Recommended Filtration Level | 13 µm, 16 µm, 18 µm |
| Seal Material | Buna-N |
| Style | 4 Way 3 Position |
| Valve Material | Steel |
| Valve Torque Into Cavity | 47 N-m to 54 N-m |
| Warranty | Hydraulics Warranty |
| Weight | 0.4 lbs. |
| Width | 1.65" |
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 4.19 |
| Ship length (cm) | 8.28 |
| Ship width (cm) | 4.19 |
| Country of Origin | US |
