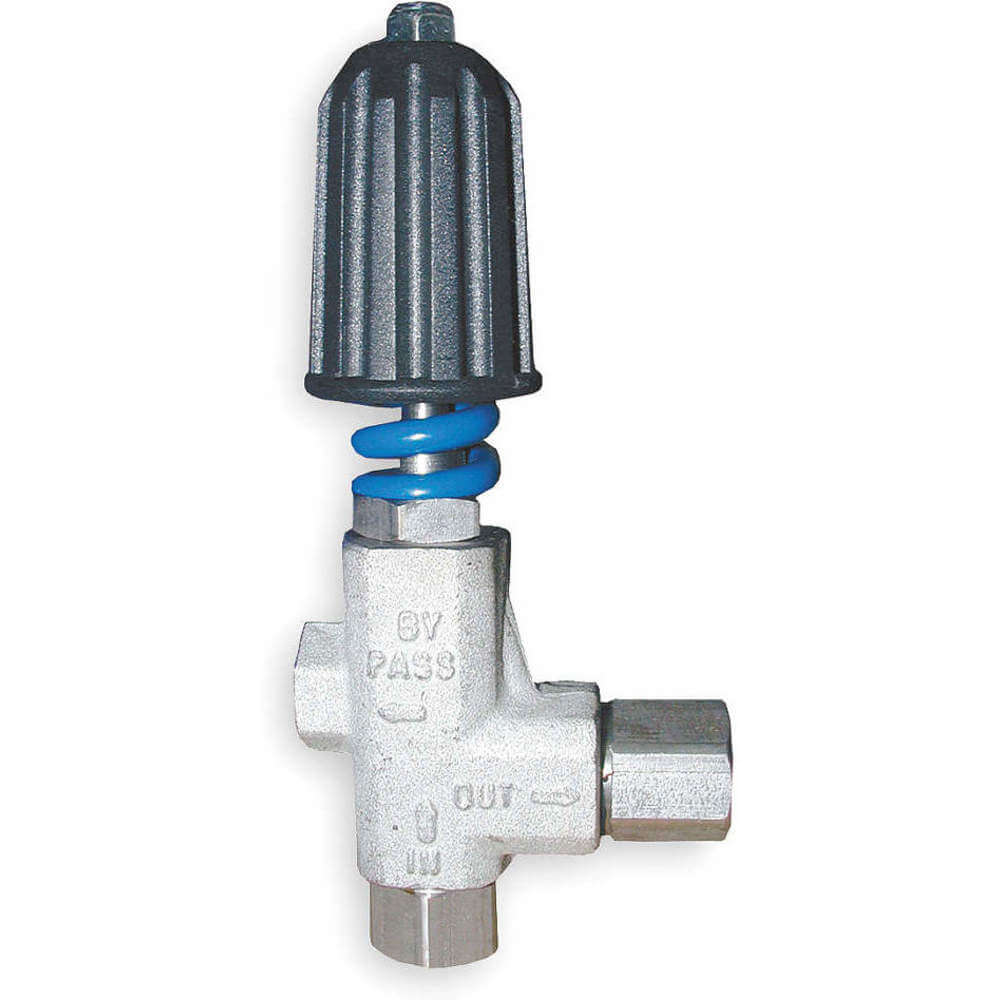

| Item | Unloader Valve |
| Body Grade | Grade 303 |
| Body Material | Stainless Steel |
| Flow Range | 0-7.8 GPM |
| Function | When Discharge Pressure Exceeds The Valve Pressure Setting, The Unloader Valve Permits A Low Pressure Bypass To Tank Or Pump Inlet, Reduces Horsepower While Permitting A Wide Range Of Flows |
| Height | 6 3/4" |
| Inlet Port Size | 3/8" |
| Inlet Port Type | Female |
| Max. Fluid Temp. | 190°F |
| Max. Pressure | 3650 psi |
| Outlet Port Size | 3/8" |
| Outlet Port Type | Female |
| Type | Regulating |
| Asme Code | Non Code |
| Bypass Connection Size | 3/8" |
| Bypass Connection Type | NPT |
| For Media | Water |
| Max. Flow Rate | 7.8 GPM |
| Max. Fluid Temperature | 190°F |
| Max. Operating Pressure | 3650 psi |
| Min. Flow Rate | 0 GPM |
| Min. Operating Pressure | 1000 psi |
| Outlet Connection Gender | Female |
| Outlet Connection Size | 3/8" |
| Outlet Connection Type | NPT |
| Overall Height | 6 3/4" |
| Valve Type | Regulating |
| Wetted Material | Stainless Steel |
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 6.1 |
| Ship length (cm) | 19.81 |
| Ship width (cm) | 9.65 |
| HS code | 8481809050 |
| Country of Origin | IT |
