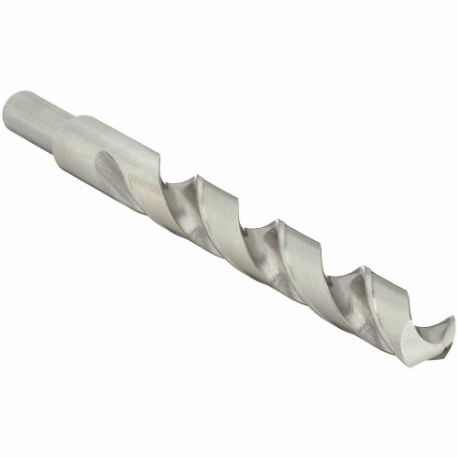

CLE-LINE C20628 Reduced Shank Drill Bit, 1/2 Inch Size, 6 Inch Overall Length
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Reduced Shank Drill Bit |
| Application | For Non-Ferrous Materials |
| Coolant Fed | Non Coolant Through , Non-Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.5 |
| Depth X Dia. Ratio | 4xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Bright |
| Drill Bit Material | High Speed Steel |
| Finish | Bright, Uncoated |
| Flute Length | 3 1/8" |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | 28° |
| List Number | 1808 |
| Material | High Speed Steel |
| Max. Drilling Depth | 2" |
| No. Of Pieces | 1 |
| Number Of Flutes | 2 |
| Overall Length | 6" |
| Point Angle | 118° |
| Point Type | Conventional Point |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Magnesium, Steel |
| Primary Material Application Iso Code | K, N, P |
| Shank Dia. | 3/8" |
| Shank Length | 1 1/2" |
| Shank Type | Straight |
| Silver & Deming Drill | Yes |
| Size | 1/2" |
| Spiral Direction | Right Hand |
| System Of Measurement | Fractional Inch , Imperial |
| Depth:dia. Ratio | 4xD |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | 1/2" |
| Drill Diameter Tolerance | 0"/-0.0012" |
| Finish - Machining | Bright (Uncoated) |
| Material - Machining | High Speed Steel |
| Maximum Drilling Depth | 2" |
| Measurement System | Fractional Inch |
| Shank Type - Machining | Straight |
| Standards | NOT RATED |
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
