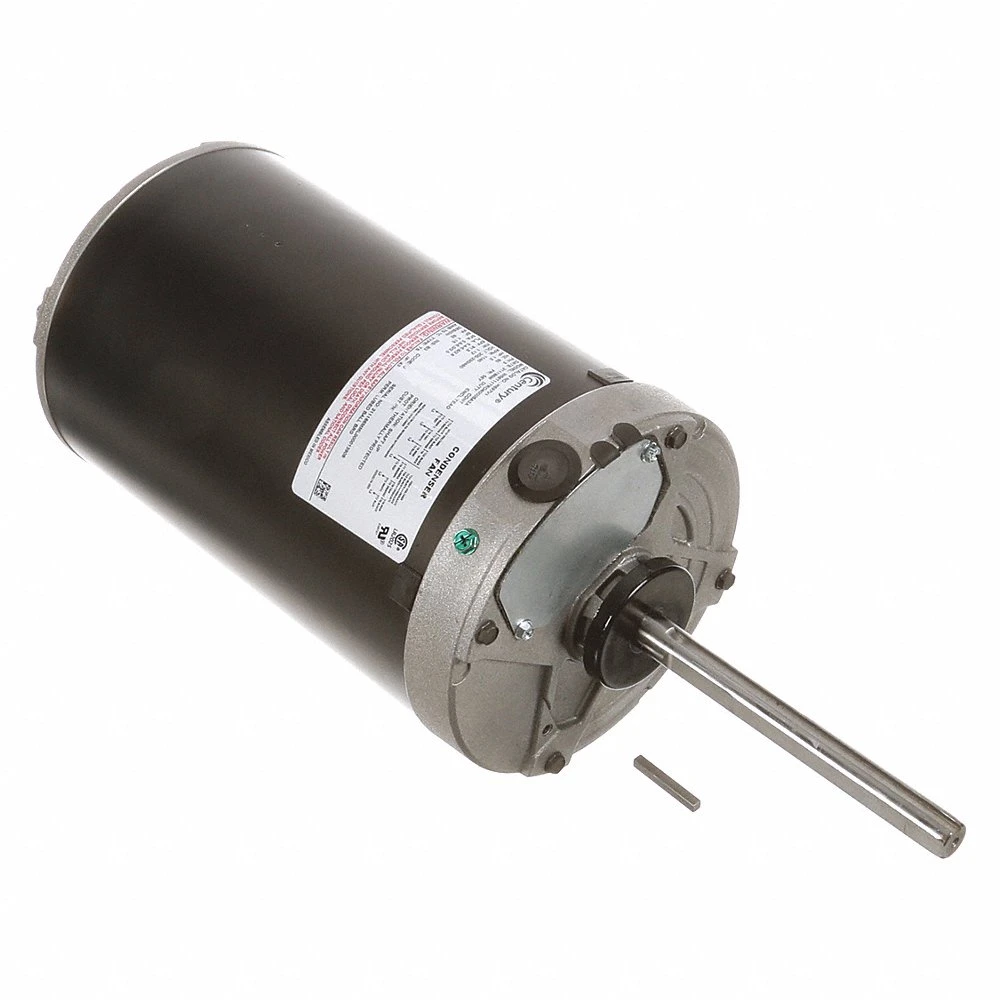

| Item | Condenser Fan Motor |
| Ambient Temp. | 70°C |
| Application | Condenser Fan |
| Bearing Type | Ball |
| Body Dia. | 6 9/16" |
| Duty | Continuous |
| Efficiency | 81.5% |
| Features | Automatic Reset Thermal Protector Prevents Overheating, Permanently Lubricated, Double-Sealed Bearings |
| Frame | 56Y |
| Full Load Amps | 5.4-5.6/2.8A |
| Hp | 1 1/2 hp |
| Length Less Shaft | 12 3/8" |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Counter Clockwise |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Auto |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Nameplate Rpm | 1140 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 81.5% |
| Number Of Speeds | 1 |
| Overall Length | 18 1/4" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 5 15/16" |
| Thermal Protection | Automatic |
| Voltage | 200-230/460V AC |
| Duty Cycle | Continuous |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Max. Ambient Temp. | 70°C |
| Motor Design | 3-Phase |
| Motor Service Factor | 1.15 |
| Standards | CSA CERTIFIED, UL RECOGNIZED |
| Ship weight (kg) | 43.2 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 20.32 |
| Country of Origin | MX |
