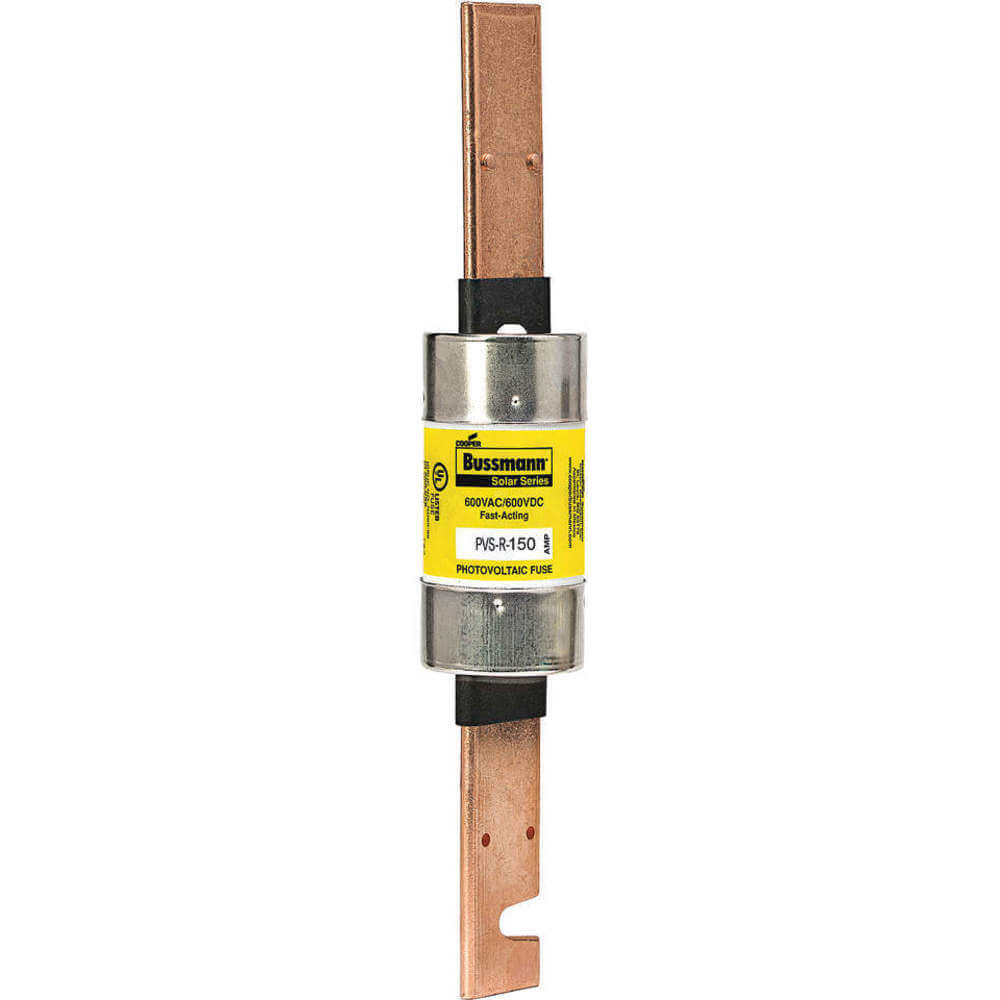

| Item | Solar Fuse |
| Amps | 150A |
| Body Material | Fiberglass |
| Body Style | Cylindrical |
| Class | RK5 |
| Element | Single |
| Indicating / Nonindicating | Nonindicating |
| Interrupt Rating | 200 kA Ac, 10 kA DC |
| Length | 9 5/8" |
| Rejection / Nonrejection | Rejection |
| Speed Type | Fast Acting |
| Ac Voltage Rating | 600V AC |
| Dc Voltage Rating | 600V DC |
| Diameter | 1 13/16" |
| Equivalent Brand And Series | Bussmann PVS-R |
| Equivalent Series | PVS R |
| Fits Fuse Block Style | Rejection |
| Fuse Size | 9 5/8" L x 1 13/16" dia. |
| Series | PVS-R Series |
| Speed | Fast Acting |
| Standards | UL STD. 248-12, CLASS RK5, UL LISTED, GUIDE JFGA, FILE E335324, PHOTOVOLTAIC TO UL 2579, CSA COMPONENT CERTIFIED C22.2 |
| Visual Indication | Nonindicating |
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 26.16 |
| Ship width (cm) | 5.08 |
| HS code | 8536100040 |
| Country of Origin | MX |
| Product | Model | Diameter | Fuse Amps | Interrupt Rating | Length | Price | |
|---|---|---|---|---|---|---|---|
 |
PVS-R-20 | 13/16" | 20 | 200kA AC, 20kA DC | 5" | €83.29 | |
 |
PVS-R-25 | 13/16" | 25 | 200kA AC, 20kA DC | 5" | €83.29 | |
 |
PVS-R-30 | 13/16" | 30 | 200kA AC, 20kA DC | 5" | €83.29 | |
 |
PVS-R-35 | 1 1/16" | 35 | 200kA AC, 20kA DC | 5.5" | €148.72 | |
 |
PVS-R-40 | 1 1/16" | 40 | 200kA AC, 20kA DC | 5.5" | €144.84 | |
 |
PVS-R-50 | 1 1/16" | 50 | 200kA AC, 20kA DC | 5.5" | €149.54 | |
 |
PVS-R-60 | 1 1/16" | 60 | 200kA AC, 20kA DC | 5.5" | €141.87 |
