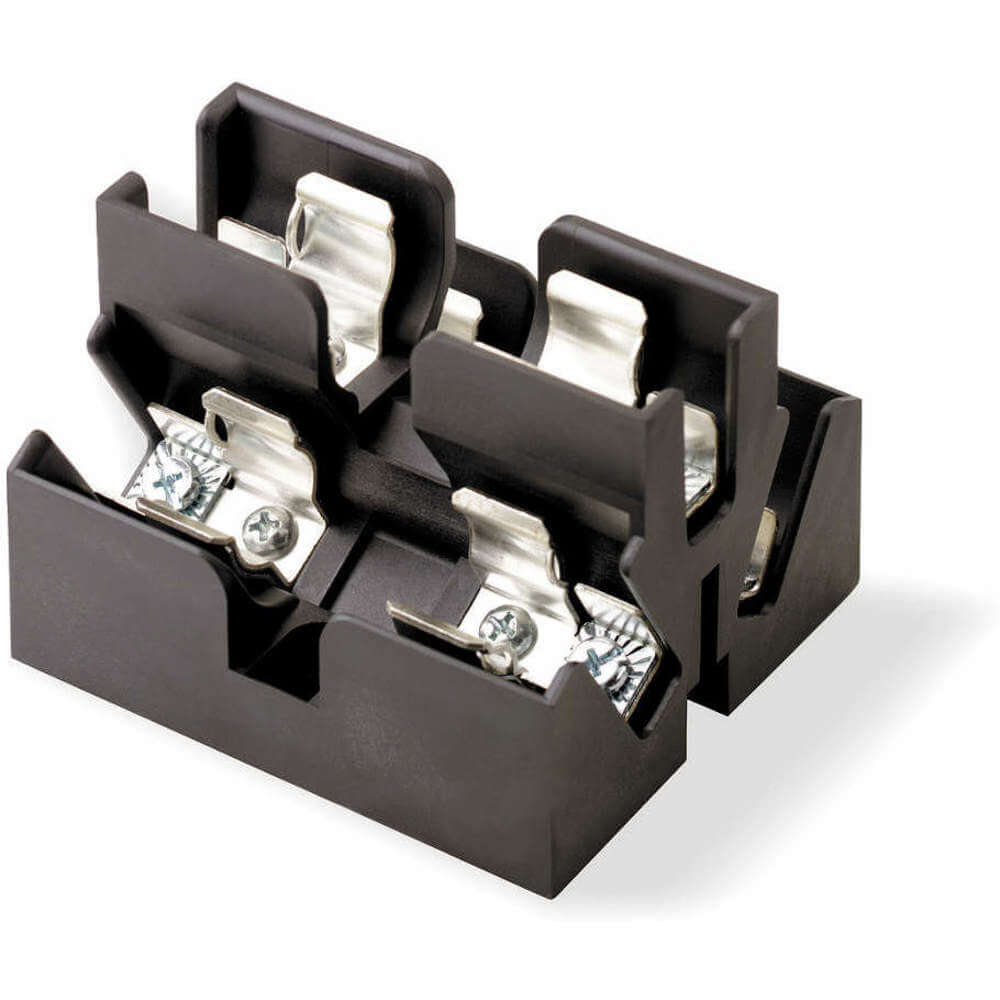

| Item | Fuse Block |
| Ac Voltage Rating | 600V AC |
| Amp Range | 1-30A |
| Blown Fuse Indicator | No |
| Compatible Fuse Series | JP Series |
| Connector Type | Box |
| Dc Voltage | 300V DC |
| Depth | 3.06" |
| Fits Fuse Type | Industrial |
| Fuse Block Design | Pyramid |
| Fuse Current | 0-30A |
| Fuse Dia. | 0.812" |
| Fuse Holder Code | Z |
| Fuse Length | 2 1/4" |
| Fuse Overall Diameter | 13/16" |
| Fuse Overall Length | 3 3/4" |
| Fuse Type | Industrial |
| Fuse Ul Class | Class J |
| Height | 3.06" |
| Indicating / Nonindicating | Non Indicating |
| Length | 4.13" |
| Material | Thermoplastic |
| Max. Voltage | 600V |
| Mounting Type | Bolt Down |
| Number Of Poles | 3 |
| Visual Indication | Non Indicating |
| Voltage | 600V AC/300V DC |
| Width | 3.13" |
| Wire Size | 2 AWG to 14 AWG |
| Body Material | Thermoplastic |
| For Fuse Size | 2 1/4" L x 13/16" dia. |
| Fuse Block Style | Nonrejection |
| Mounting Style | Bolt-Down |
| Spring Reinforced Clip | Yes |
| Voltage Rating | 600V AC/300V DC |
| Wire Range | 14 AWG to 2 AWG |
| Ship weight (kg) | 0.32 |
| Ship height (cm) | 11.68 |
| Ship length (cm) | 43.94 |
| Ship width (cm) | 15.24 |
| HS code | 8536908085 |
| Country of Origin | MX |
| Product | Model | Ac Voltage Rating | Amps Ac | Blown Fuse Indicator | Connector Type | Dc Voltage Rating | Depth | Fuse Block Design | Fuse Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
G30060-3CR | 480 VAC | 60 | No | Box with Clip | 300 VDC | 1.41" | Open | 13/32" | €195.48 | |
 |
1976-3 | 700 VAC | 30 | - | - | 700 VDC | - | Not Applicable | - | €145.33 |
