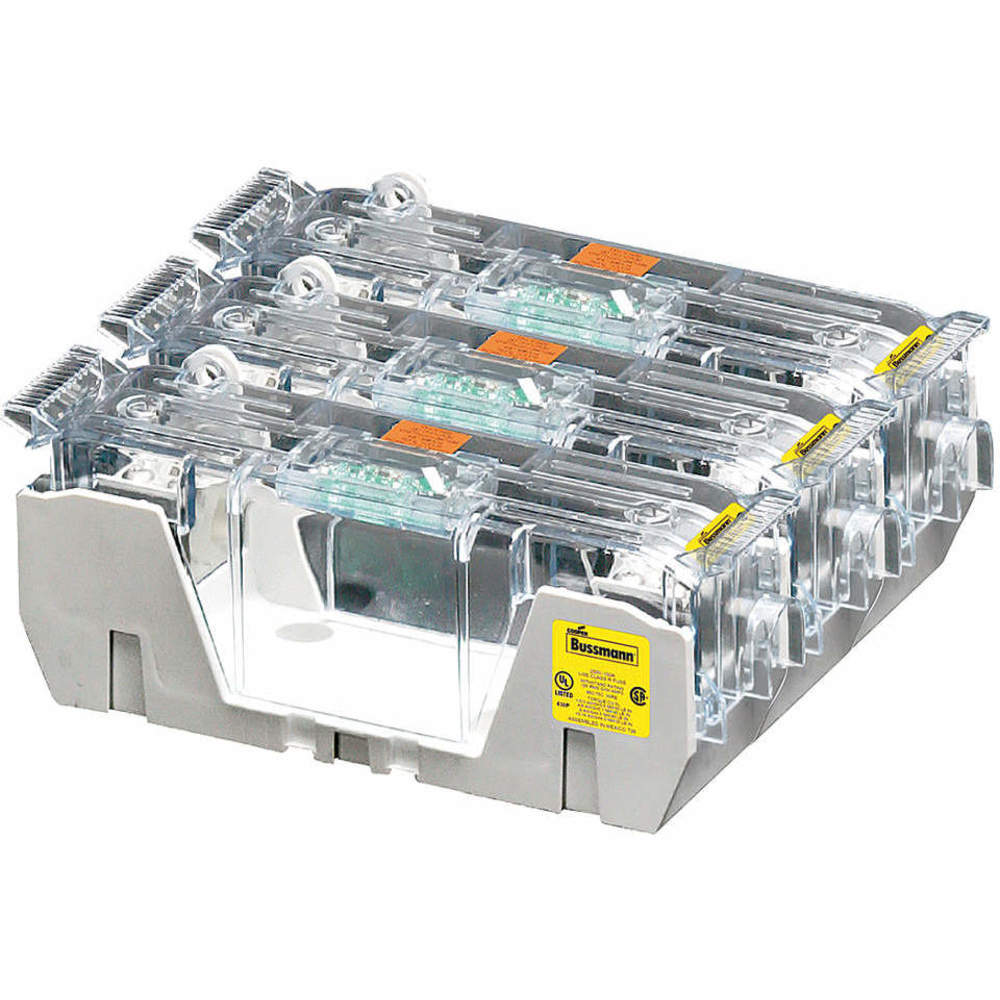

BUSSMANN HM25600-3CR Fuse Block 450 To 600 Amps 250max Volt 3p

Name: BUSSMANN HM25600-3CR Fuse Block 450 To 600 Amps 250max Volt 3p
Brand: BUSSMANN
SKU: AC8FBW
Price: 3931.95 EUR
Availability: InStock

In Stock

Item: AC8FBW Model: HM25600-3CRCross Ref: 39P345

Check Availability

See variants (30)

Get it by Jun 10, Monday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

€3,931.95 /unit

Add To Cart

Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

Item	Fuse Block
AC Voltage Rating	250 VAC
Amperage Range	450 to 600
Amps AC	450 to 600
Blown Fuse Indicator	No
Connector Type	Box Lug
DC Voltage Rating	Not Applicable
Depth	6"
Fuse Block Design	Barrier
Fuse Dia.	2-3/5"
Fuse Holder Code	BL
Fuse Length	10 2/5"
Fuse Type	Industrial
Fuse UL Class	H
Height	5.3"
Indicating / Nonindicating	Nonindicating
Length	11 2/5"
Max. Amps	600
Max. Voltage	250
Mounting Style	4 Hole Panel Mount
Number of Poles	3
Width	14 4/5"
Wire Size	(2) 500 kcmil to 4 AWG

Shipping Info:

Ship weight (kg)	1.8
Ship height (cm)	15.75
Ship length (cm)	29.46
Ship width (cm)	28.45
HS code	8536908085
Country of Origin	MX

Product Variants

Model	Max. Voltage	Fuse Holder Code	AC Voltage Rating	Connector Type	DC Voltage Rating	Depth	Fuse Block Design	Fuse Dia.	Price
HM25100-3CR	250	L	250 VAC	Box Lug	125 VDC	2-1/5"	Barrier	1"	€207.94
HM25200-3CR	250	M	250 VAC	Box Lug	Not Applicable	3"	Barrier	1-3/5"	€669.60
HM25400-3CR	250	N	250 VAC	Box Lug	Not Applicable	4"	Barrier	2"	€2,457.43
HM60100-3CR	600	R	600 VAC	Box Lug	Not Applicable	2-1/5"	Barrier	1-1/3"	€216.79
HM60200-3CR	600	S	600 VAC	Box Lug	Not Applicable	3"	Barrier	1-4/5"	€928.37
HM60400-3CR	600	T	600 VAC	Box Lug	Not Applicable	4-1/5"	Barrier	2-3/5"	€2,680.74
HM25030-1CR	-	-	250 VAC	Box Lug	125 VDC	-	Open	-	€59.85
