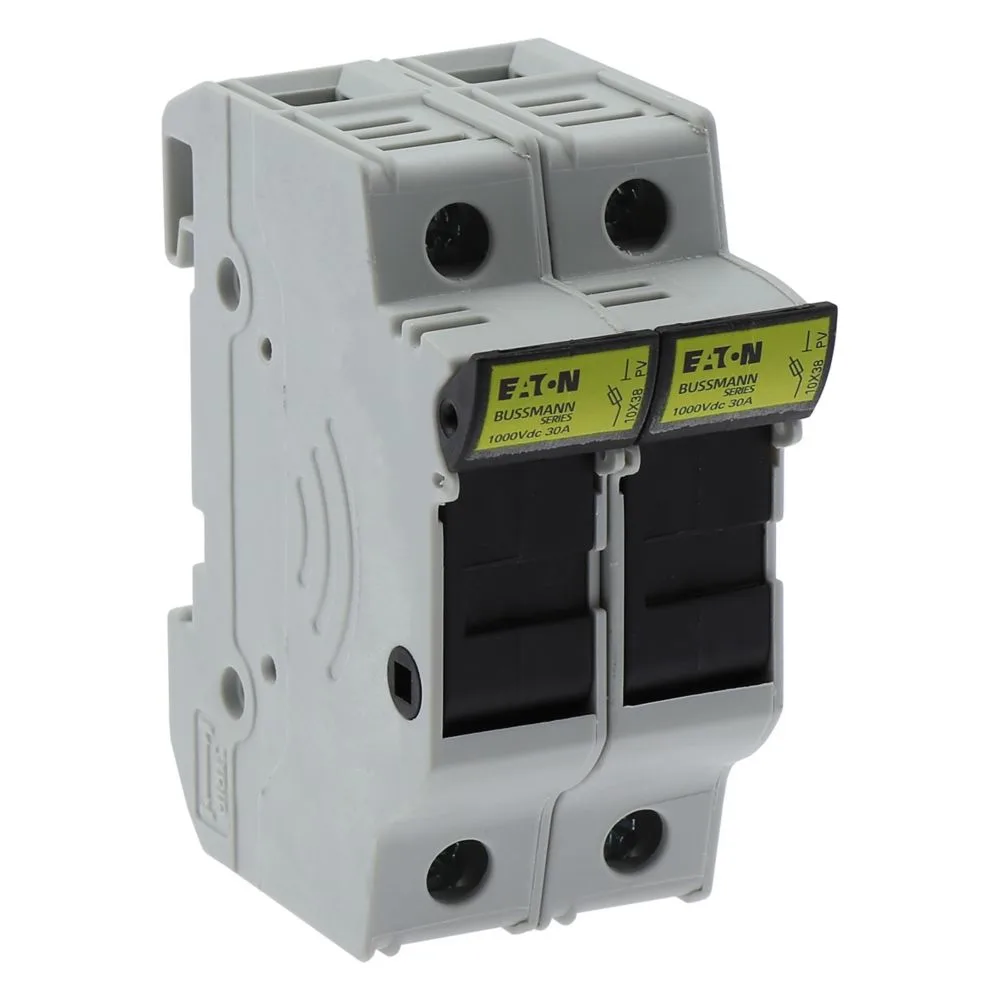

BUSSMANN CHPV2U Fuse Module, 2 Pole, 30 A, 1 kVDC, White
In Stock : 600 UnitsGet it by Friday, Jun 13
€24.75 /unit
This product can only be shipped in multiples of 2Add To Cart
Request a Quote
Payment
Get it by Friday, Jun 13
Payment
| Item | Fuse Block |
| Amps | 30A |
| Color | White |
| Compatible Fuse Series | CHPV Series |
| Fits Fuse Type | Solar |
| Fuse Current | 0-30A |
| Fuse Overall Diameter | 13/32" |
| Fuse Overall Length | 2.91" |
| Fuse Ul Class | Not Class Rated |
| Illumination | Not Illuminated |
| Material | Thermoplastic |
| Mounting Type | DIN Rail |
| Number Of Poles | 2 |
| Packaging | Bulk |
| Product Type | Fuse Holder |
| Shaft Type | Captive Drawer |
| Termination Type | Screw |
| Visual Indication | Non Indicating |
| Voltage | 1000V DC |
| Amp Range | 0-30A |
| Body Material | Thermoplastic |
| Connector Type | Clamp/Spade Lug |
| For Fuse Size | 1 1/2" L x 13/32" dia. |
| Fuse Block Design | Finger-Safe |
| Fuse Block Style | Nonrejection |
| Height | 2.43" |
| Length | 2.91" |
| Mounting Style | DIN Rail |
| Standards | CE, CSA CERTIFIED, UL LISTED |
| Voltage Rating | 1000V DC |
| Width | 1.38" |
| Wire Range | 18 AWG to 4 AWG |
| Ship weight (kg) | 0.67 |
| Ship height (cm) | 6.17 |
| Ship length (cm) | 7.39 |
| Ship width (cm) | 3.51 |
| Country of Origin | CN |
