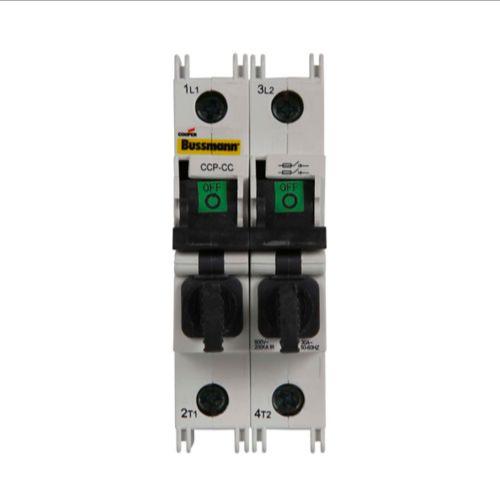

BUSSMANN CCP-2-30CC Fusible Disconnect, 30 A, 125 VDC, Two Pole
Item: AA6PLM
Model: CCP-2-30CCCross Ref: 14L601
Get it by May 24, Friday
Request a Quote
Payment Methods
Delivery Partners
Get it by May 24, Friday
Payment Methods
Delivery Partners
Item | Fusible Disconnect |
Amps | 30 |
Class | Class CC |
Current Rating | 30A |
Depth | 3.7" |
Height | 3.14" |
Interrupt Rating | 200kA at 600 VAC |
Length | 3.65" |
Max. Wire Size | 4 AWG |
Min. Wire Size | 18 AWG |
Number of Poles | 2 |
Product Datasheet | bussmann-ccp-2-30cc.pdf |
Type | Fusible Disconnect |
Voltage | 600 VAC |
Voltage Rating | 600V AC, 125V DC |
Width | 2.07" |
Ship weight (kg) | 0.2 |
Ship height (cm) | 7.98 |
Ship length (cm) | 9.27 |
Ship width (cm) | 5.26 |
HS code | 8537109070 |
Country of Origin | CN |
A. This compact circuit protector features DIN rail mounting for easy and secure installation.
A. This circuit protector can be used with ATDR, ATMR, ATQR, CCMR, FNQ-R, KLDR, KLKR, KTK-R and LP-CC Series fuses.
A. This compact circuit protector has current ratings ranging from 0 to 30A.
A. It has an operating temperature ranging from -20 to 75 degrees C.
A. For higher current ratings, check brand's CCP-2-100CF cube fuse circuit protector having amperage ratings of 100A and interrupt rating of 200kA at 600VAC .
A.
Product | Model | Height | Number of Poles | Width | Price | |
---|---|---|---|---|---|---|
CCP-1-30CC | 3.1" | 1 | 0.7" | €87.28 |
