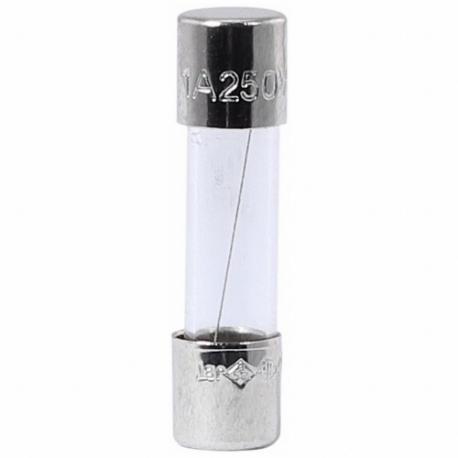

| Item | Fuse |
| Ac Voltage | 250V AC |
| Amps | 1A |
| Body Material | Ceramic |
| Body Style | Cylindrical |
| Cap Dia. | 5 1/5" |
| Dc Voltage | Not Rated |
| Diameter | 5 mm |
| Interrupt Rating | 35A @ 250V AC |
| Length | 20 mm |
| Speed Type | Time Delay |
| Visual Indication | Non Indicating |
| Ac Voltage Rating | 250V AC |
| Cap Diameter | 5 1/5" |
| Compatible Fuse Block Series | 1A3399, H15, HHT, HTB, HTC-15M |
| Dc Voltage Rating | Not Rated |
| Equivalent Brand And Series | Bussmann GMC |
| Equivalent Series | 239, GMC, GSC |
| Fuse Size | 20.00 mm L x 5.00 mm dia. |
| Speed | Time Delay |
| Standards | CSA CERTIFIED CLASS 1422-01 FILE E65063, KC-MARK CERTIFICATE SU05011-4003, MITI APPROVAL, UL LISTED GUIDE JDYX FILE E19180, UL/CSA 248-14 |
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Current Rating | Diameter | Fuse Size / Group | Interrupt Rating | Item | Length | Mfr. Series | Resistance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
AGA-25 | 25A | 6.4mm | 1AG (6.3 mm x 15.9 mm) | 1kA at 32 VDC | Glass Fuse | 15.88mm | AGA | 3 milli-Ohms | 1 | €4.41 | RFQ
|
 |
AGX-1/200 | 5mA | 6.3mm | 8AG (6.25 mm x 25 mm) | 35A at 250 VAC, 10KA at 125 VAC | Glass Fuse | 25.4mm | AGX | 285 Ohms | 1 | €89.38 | RFQ
|
|
AGX-7 | 7A | 6.3mm | 8AG (6.25 mm x 25 mm) | 1kA at 125 VAC | Glass Fuse | 25.4mm | AGX | - | 1 | €2.21 | |
 |
MKB-1/16 | 62.5mA | - | - | - | Glass Fuse | - | - | - | 1 | €113.86 | RFQ
|
 |
BK/MDL-6/10-R | - | - | - | - | Fuse | - | - | - | 100 | €620.97 | |
 |
BK/AGC-1/4-R | - | - | - | - | Fuse | - | - | - | 100 | €538.73 | |
 |
BK/S500-250-R | - | - | - | - | Fuse | - | - | - | 100 | €621.56 |
