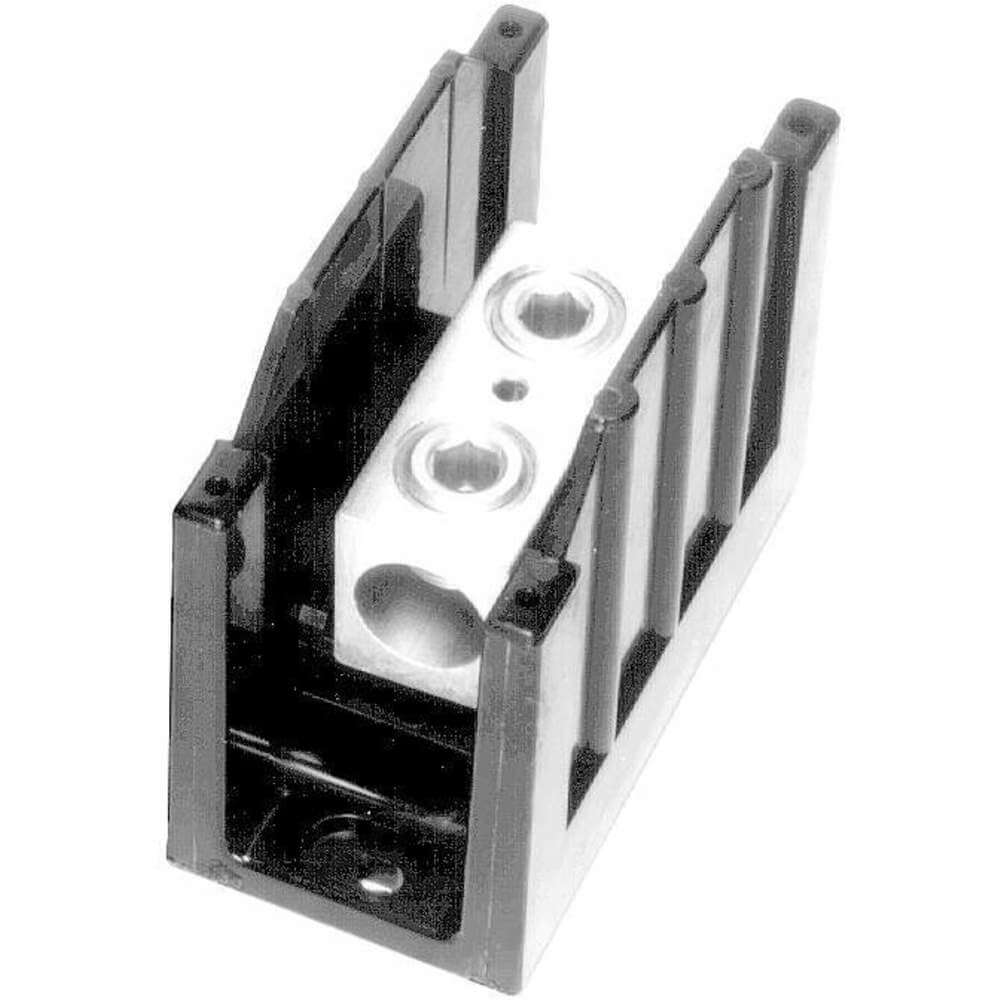

| Item | Splicer Terminal Block |
| Amps | 115A |
| Depth | 1 3/4" |
| Length | 2 22/25" |
| Max. Amps | 115A |
| Number Of Poles | 1 |
| Secondary Connection/pole | 1 |
| Voltage | 600V AC |
| Width | 1.06" |
| Flammability Rating | V-0 |
| For Conductor Material | Aluminum, Copper |
| For Maximum Line Wire Size | 2 AWG |
| For Maximum Load Wire Size | 2 AWG |
| For Minimum Line Wire Size | 14 AWG |
| For Minimum Load Wire Size | 14 AWG |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Line Connections/pole | 1 |
| Line Side Connection Type | Lug |
| Load Connections/pole | 1 |
| Load Side Connection Type | Lug |
| Maximum Current | 115A |
| Maximum Operating Temperature | 248°F |
| Maximum Voltage | 600V AC/DC |
| Overall Depth | 1.69" |
| Overall Length | 2.81" |
| Overall Width | 1 3/5" |
| Power Distribution Block Design | Open |
| Standards | CSA CLASS 6228-01, UL 1059 |
| Terminal Material | Aluminum, Copper |
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 6.86 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 4.06 |
| HS code | 8536904000 |
| Country of Origin | MX |
