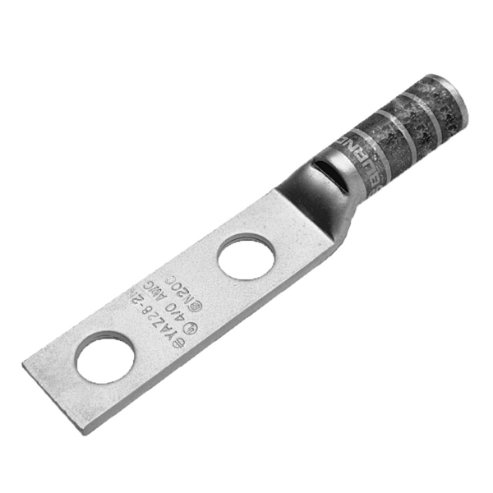

| Item | Two Hole Narrow Tongue Long Barrel CU Lug |
| Barrel Outside Diameter | 1 1/4" |
| Barrel Size | Long |
| Barrel Style | Skived |
| Barrel Type | Long |
| Body Material | Copper |
| Cable Size | 500 kcmil |
| Cable Size Code | 500 kcmil |
| Color Code | Pink |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| For Conductor Material | Copper |
| For Max. Stranded Copper Wire Size | 550 kcmil |
| For Stranded Copper Wire Size - Minimum | 500 kcmil |
| For Stud Size | 1/2" |
| For Wire Type | Stranded |
| Hole Center To End | 0.62" |
| Hole Size | 0.53" |
| Inspection Hole | Yes |
| Insulation | Non Insulated |
| Length | 6 18/25" |
| Length (straight Wireway) | 6 18/25" |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Material | Copper |
| Mount | Bolt |
| Mounting | Bolt |
| Number Of Holes | 2 |
| Peep Hole | Yes |
| Plate Material | Electro TIN |
| Rohs Compliant | Yes |
| Stud Size | 1 3/4" |
| Terminal Material | Copper |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Style | Standard |
| Tongue Width | 1.62" |
| Type | Standard |
| Width | 1.63" |
| Wire Material | Copper |
| Barrel Od | 1 1/4" |
| Die Code | L99 |
| For Wire Size | 500 kcmil, 535 kcmil, 550 kcmil |
| Hole Center To Center | 1 3/4" |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 35 kV AC |
| Maximum Wire Size | 550 kcmil |
| Overall Length | 6.72" |
| Overall Width | 1.63" |
| Special Features | Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands During Insertion, Tin-Zinc Plated for Battery Connectors or Other Heavy Duty Equipment, to Reduce the Corrosion From Lead/Acid Batteries, Uninsulated Copper Compression Terminal, Tin-Zinc Plated, Up to 35 Kv |
| Standards | CSA CERTIFIED, UL 486A-486B, UL LISTED |
| Strip Length | 2 7/8" |
| Tongue Length | 1.27" |
| Tongue Thickness | 0.27" |
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 17.07 |
| Ship width (cm) | 4.14 |
| HS code | 8535908020 |
| Country of Origin | US |
| Product | Model | Cable Size | Cable Size Code | Color Code | Die Code | Hole Center To End | Item | Length | Stud Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YAZ342NT38FX | 374 kcmil | 350 kcmil | Blue | 19 | 0.41" | Two Hole Narrow Tongue Long Barrel CU Flex Lug | 4.86" | 3/8" | €139.95 |
