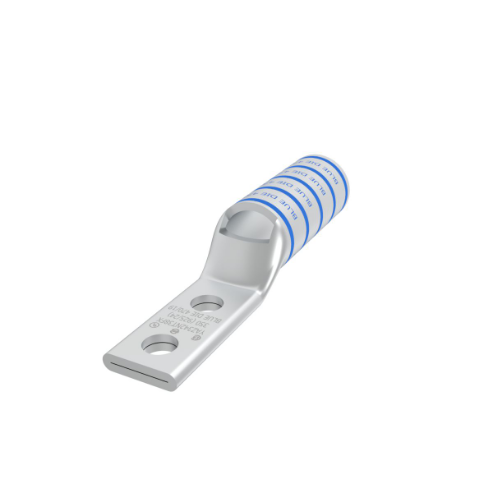

| Item | Two Hole Narrow Tongue Long Barrel CU Flex Lug |
| Barrel Outside Diameter | 1.06" |
| Barrel Size | Long |
| Barrel Style | Skived |
| Barrel Type | Long |
| Body Material | Copper |
| Cable Size | 374 kcmil |
| Cable Size Code | 350 kcmil |
| Color Code | Blue |
| Connector Type | Straight Barrel |
| Contact Finish | Tin |
| Die Code | 19 |
| For Conductor Material | Copper |
| For Max. Stranded Copper Wire Size | 500 kcmil |
| For Stranded Copper Wire Size - Minimum | 350 kcmil |
| For Stud Size | 3/8" |
| For Wire Type | Stranded |
| Hole Center To End | 0.41" |
| Hole Size | 0.39" |
| Hole To Hole Center | 1" |
| Inspection Hole | Yes |
| Insulation | Non Insulated |
| Length | 4.86" |
| Length (straight Wireway) | 4.86" |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Material | Copper |
| Mount | Bolt |
| Mounting | Bolt |
| Number Of Holes | 2 |
| Peep Hole | Yes |
| Plate Material | Electro TIN |
| Rohs Compliant | Yes |
| Stud Size | 3/8" |
| Terminal Material | Copper |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Style | Standard |
| Tongue Width | 24/25" |
| Type | Standard |
| Width | 24/25" |
| Wire Material | Copper |
| Barrel Od | 1.06" |
| For Wire Size | 350 kcmil |
| Hole Center To Center | 1" |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 35 kV AC |
| Maximum Wire Size | 500 kcmil |
| Overall Length | 4.85" |
| Overall Width | 24/25" |
| Special Features | Barrel is Designed with an Internal Chamfer at the Wire Entry to Ensure Smooth Insertion of the Wire, Preventing Possible Damaging of the Wire Strands During Insertion, Tin-Zinc Plated for Battery Connectors or Other Heavy Duty Equipment, to Reduce the Corrosion From Lead/Acid Batteries, Uninsulated Copper Compression Terminal, Tin-Zinc Plated, Up to 35 Kv |
| Standards | CSA CERTIFIED, UL 486A-486B, UL LISTED |
| Strip Length | 2 5/16" |
| Tongue Length | 0.84" |
| Tongue Thickness | 0.23" |
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 2.69 |
| Ship length (cm) | 12.32 |
| Ship width (cm) | 2.44 |
| HS code | 8535908020 |
| Country of Origin | US |
| Product | Model | Cable Size | Cable Size Code | Color Code | Die Code | Hole Center To End | Item | Length | Stud Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
YAZ382NNTFX | 500 kcmil | 500 kcmil | Pink | L99 | 0.62" | Two Hole Narrow Tongue Long Barrel CU Lug | 6.72" | 1.75" | €183.59 |
