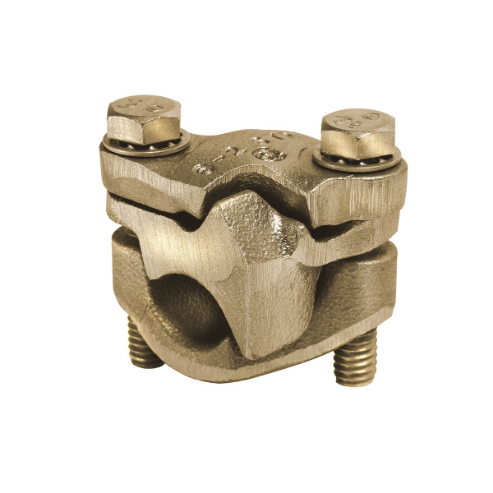

BURNDY QPX282C Parallel Clamp 1 6AWG 2In
Get it by Tuesday, Jun 17
€84.91 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Parallel Clamp |
| Body Material | Copper |
| Compatible With Product Type | Copper Cable |
| Connection Orientation | Parallel Clamp |
| Connector Type | Parallel Clamp |
| Contact Finish | Unplated |
| For Conductor Material | Copper |
| For Stranded Copper Wire Size | 1 AWG |
| For Stranded Copper Wire Size - Minimum | 2 AWG |
| For Stud Size | 5/16" |
| For Wire Size | 2 AWG |
| Head Type | Hex |
| Hole Dia. | Not Applicable |
| Hole Spacing | Not Applicable |
| Length | 2" |
| Length (straight Wireway) | 2" |
| Material | Copper |
| Min. Conductor Size | 1 AWG, 6 AWG |
| No. Of Conductors | 2 |
| Number Of Conductors | 2 |
| Overall Depth | 1 9/16" |
| Special Features | Edges Are Rounded For Easy Taping, For Tee, Cross, Parallel, Butt And Tap Connections, Range-Taking |
| Stud Size | 0.312" |
| Terminal Material | Copper |
| Type | Commercial |
| Width | 1.57" |
| For Stranded Copper Wire Size - Maximum | 1 AWG |
| Head Style | Hex |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 600V |
| Number Of Terminations | 2 |
| Overall Length | 1.31" |
| Overall Width | 2.06" |
| Standards | UL LISTED |
| Torque | 180 lbs.-in. |
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 5.23 |
| Ship length (cm) | 3.33 |
| Ship width (cm) | 3.96 |
| HS code | 8535908040 |
| Country of Origin | US |
| Model | Height | Item | Length | Max. Conductor Size | Min. Conductor Size | Min. Voltage | Overall Length | Stud Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| QPX2828 | - | Parallel Clamp | 2.13" | 4/0 AWG | 1 AWG | - | - | 3/8" | €107.75 | |
| QPX2C2C | - | Parallel Clamp | 1.63" | 2 AWG | 6 AWG | - | - | 5/16" | €70.88 | |
| QPX282CY | - | Parallel Clamp | 1.88" | 4/0 (run), 2 (tap) AWG | 1/0 (run), 6 (tap) | - | - | - | €216.20 | |
| QPX2828Y | 10.24" | Parallel Clamp | - | - | - | - | - | - | - | RFQ
|
| QPX4434 | 3.06" | Parallel Clamp | - | - | - | - | 2.06" | - | - | RFQ
|
| QPX4428 | 2.88" | Parallel Clamp | - | - | - | - | 1.81" | - | - | RFQ
|
| QPX3434 | 3" | Parallel Clamp | - | - | - | - | 2.06" | - | - | RFQ
|
