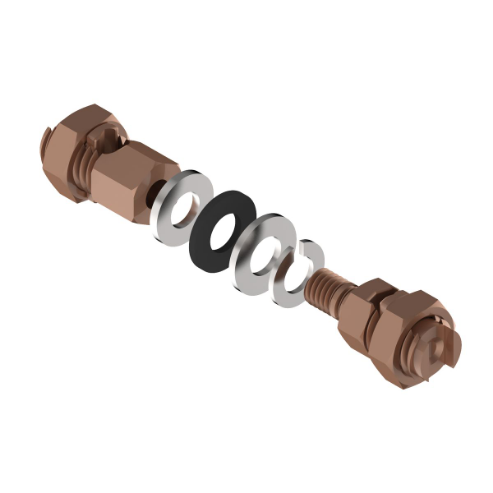

BURNDY KCKF23 Ground Connector, Copper
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Ground Connector |
| Application | Designed to allow a ground wire to be connected from the inside of a box or enclosure to the outside of a box or enclosure |
| Certification - Csa Approved | No |
| Certification - Culus | No |
| Certification - Etl | No |
| Certification - Ul Recognized | No |
| Conductor - Copper Solid Size | 10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG |
| Conductor - Copper Solid Size Range | 10 AWG-1 AWG |
| Conductor - Copper Str Size | 8 AWG;7 AWG;6 AWG;5 AWG;4 AWG;3 AWG;2 AWG |
| Conductor - Copper Str Size Range | 8 AWG-2 AWG |
| Eu Rohs Indicator | Under Review |
| Material | Copper |
| Plated | N |
| Plating Type | Unplated |
| Standards - Rohs Compliance Status | UI |
| Stud Installation Torque Inch Pounds | 100 LBS/in |
| Trade Name | SERVIT POST™ |
| Type | Bulkhead Servit |
| Ul Listed | Yes |
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 4.42 |
| Ship length (cm) | 3.05 |
| Ship width (cm) | 3.45 |
| Country of Origin | US |
