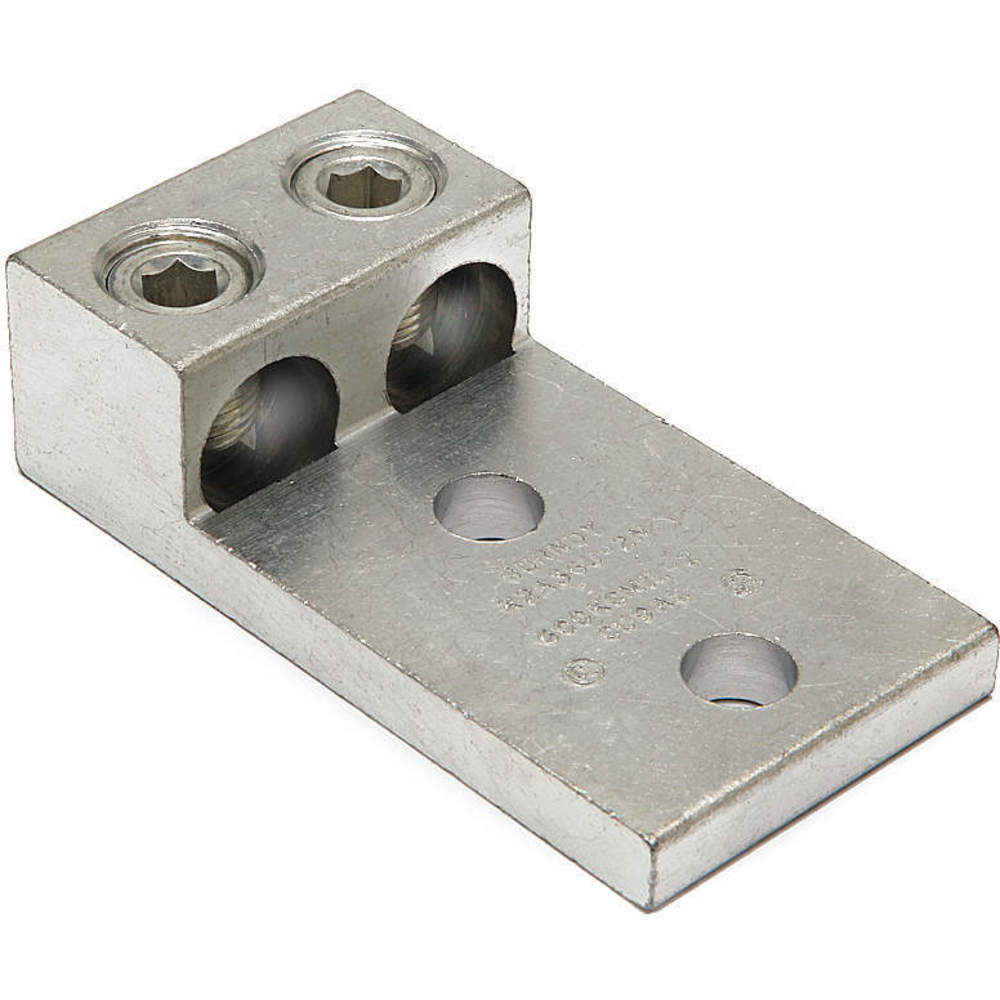

| Item | Two Conductor Lug |
| Body Material | Aluminium |
| Compatible With Product Type | Aluminum Cable, Copper Cable |
| Connection Orientation | Dual Rated Lug |
| Connector Type | Lug |
| Contact Finish | Tin |
| Finish | Tin Coated |
| For Conductor Material | Aluminum, Copper |
| For Stranded Copper Wire Size | 350 kcmil |
| For Stranded Copper Wire Size - Minimum | 6 AWG |
| For Stud Size | 1/2" |
| Head Style | Slotted |
| Hole Dia. | 14/25" |
| Hole Spacing | 1 3/4" |
| Length | 4 1/2" |
| Length (straight Wireway) | 4 1/2" |
| Material | Aluminium |
| Max. Conductor Size | 350 kcmil |
| Min. Conductor Size | 6 AWG |
| No. Of Conductors | 2 |
| Number Of Conductors | 2 |
| Number Of Holes | 2 |
| Overall Depth | 2 5/16" |
| Screw Size | 3/8" |
| Special Features | Providing Low Contact Resistance |
| Stud Size | 1/2" |
| Terminal Material | Aluminium |
| Type | Commercial |
| Width | 2.31" |
| Wire Material | Copper |
| For Stranded Copper Wire Size - Maximum | 350 kcmil |
| Hole Diameter | 0.56" |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 600V |
| Number Of Terminations | 2 |
| Overall Length | 4.5" |
| Overall Width | 1.39" |
| Standards | CSA CERTIFIED, UL LISTED |
| Tongue Length | 3" |
| Tongue Thickness | 0.31" |
| Tongue Width | 2.31" |
| Torque | 275 lbs.-in. |
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 3.53 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 5.87 |
| HS code | 8535908040 |
| Country of Origin | US |
| Product | Model | Bolt Hole Size | Hole Size | Item | Length | Max. Conductor Size | Min. Conductor Size | Min. Voltage | Number Of Holes | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
K2A25U | - | - | Two Conductor Lug | 1.47" | 1/0 AWG | 14 AWG | - | - | €24.55 | |
 |
K2A29U | - | - | Two Conductor Lug | 2.56" | 250 kcmil | 6 AWG | - | - | €53.35 | |
|
K2A26U | - | - | Two Conductor Lug | 1.47" | 2/0 AWG | 14 AWG | - | - | €18.32 | |
|
K2A31U | - | - | Two Conductor Lug | 2.88" | 350 kcmil | 6 AWG | - | - | €27.59 | |
|
K2A36U | - | - | Two Conductor Lug | 3.2" | 600 kcmil | 2 AWG | - | - | €95.74 | |
|
K2A36U2N | - | - | Two Conductor Lug | 4.69" | 600 kcmil | 2 AWG | - | - | €129.08 | |
|
K2A40U | 45 - 48" | 0.5" | Compression Lug | - | - | - | - | 1 | €52.29 |
