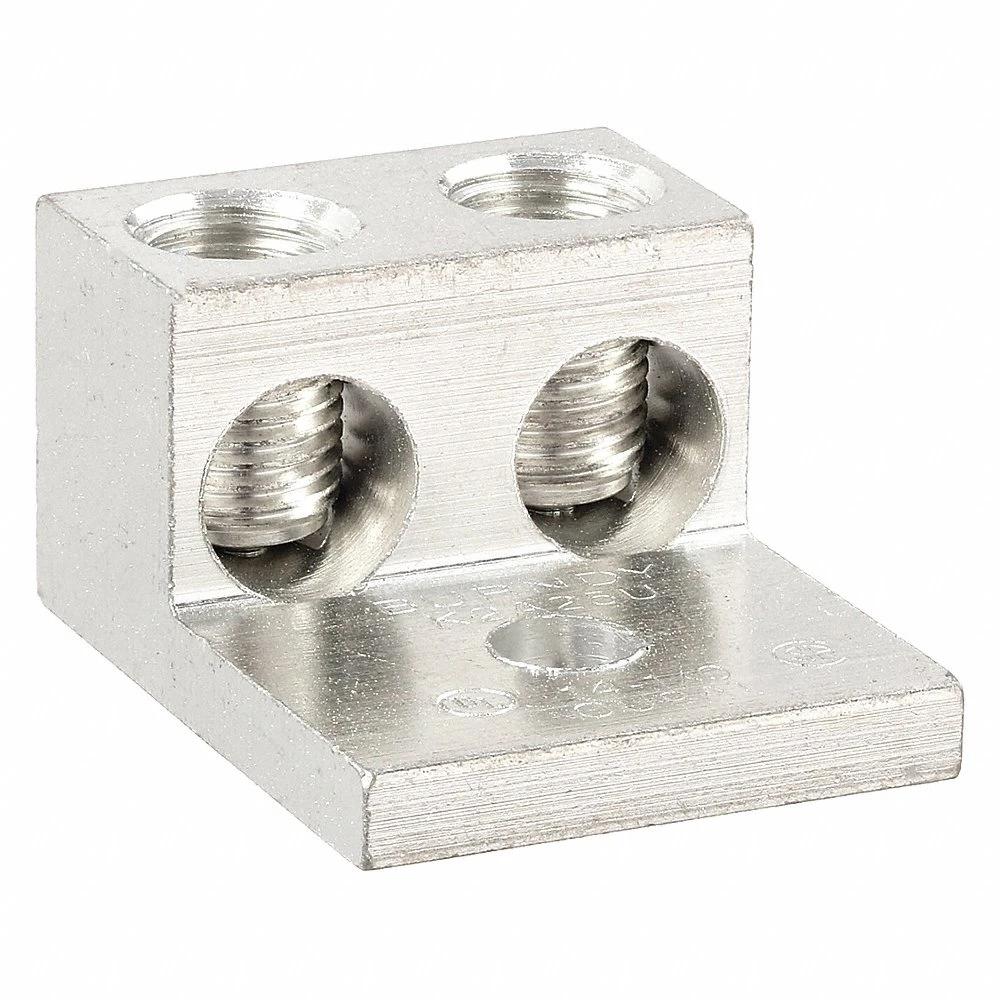

| Item | Two Conductor Lug |
| Body Material | Aluminium |
| Compatible With Product Type | Aluminum Cable, Copper Cable |
| Connection Orientation | Dual Rated Lug |
| Connector Type | Lug |
| Contact Finish | Tin |
| Finish | Tin Coated |
| For Conductor Material | Aluminum, Copper |
| For Stranded Copper Wire Size - Minimum | 14 AWG |
| For Stud Size | 1/4" |
| Head Type | Slotted |
| Hole Dia. | 0.27" |
| Hole Spacing | Not Applicable |
| Length | 1.47" |
| Length (straight Wireway) | 1.47" |
| Material | Aluminium |
| Min. Conductor Size | 14 AWG |
| No. Of Conductors | 2 |
| Number Of Conductors | 2 |
| Number Of Holes | 1 |
| Overall Depth | 1 3/16" |
| Screw Size | 3/8" |
| Special Features | Providing Low Contact Resistance |
| Stud Size | 1/4" |
| Terminal Material | Aluminium |
| Tongue Width | 1.15" |
| Type | Commercial |
| Width | 1.13" |
| Wire Material | Copper |
| For Stranded Copper Wire Size - Maximum | 1/0 AWG |
| Head Style | Slotted |
| Hole Diameter | 0.27" |
| Maximum Operating Temperature | 194°F |
| Maximum Voltage | 600V |
| Number Of Terminations | 2 |
| Overall Length | 1.47" |
| Overall Width | 0.79" |
| Standards | CSA CERTIFIED, UL LISTED |
| Tongue Length | 0.81" |
| Tongue Thickness | 0.19" |
| Torque | 50 lbs.-in. |
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.01 |
| Ship length (cm) | 3.73 |
| Ship width (cm) | 2.92 |
| HS code | 8535908040 |
| Country of Origin | MX |
| Model | Bolt Hole Size | Hole Size | Item | Length | Max. Conductor Size | Min. Conductor Size | Min. Voltage | Number Of Holes | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| K2A29U | - | - | Two Conductor Lug | 2.56" | 250 kcmil | 6 AWG | - | - | €53.35 | |
| K2A26U | - | - | Two Conductor Lug | 1.47" | 2/0 AWG | 14 AWG | - | - | €18.32 | |
| K2A31U | - | - | Two Conductor Lug | 2.88" | 350 kcmil | 6 AWG | - | - | €27.59 | |
| K2A36U | - | - | Two Conductor Lug | 3.2" | 600 kcmil | 2 AWG | - | - | €95.74 | |
| K2A36U2N | - | - | Two Conductor Lug | 4.69" | 600 kcmil | 2 AWG | - | - | €129.08 | |
| K2A31U2N | - | - | Two Conductor Lug | 4.5" | 350 kcmil | 6 AWG | - | - | €85.14 | |
| K2A40U | 45 - 48" | 0.5" | Compression Lug | - | - | - | - | 1 | €52.29 |
