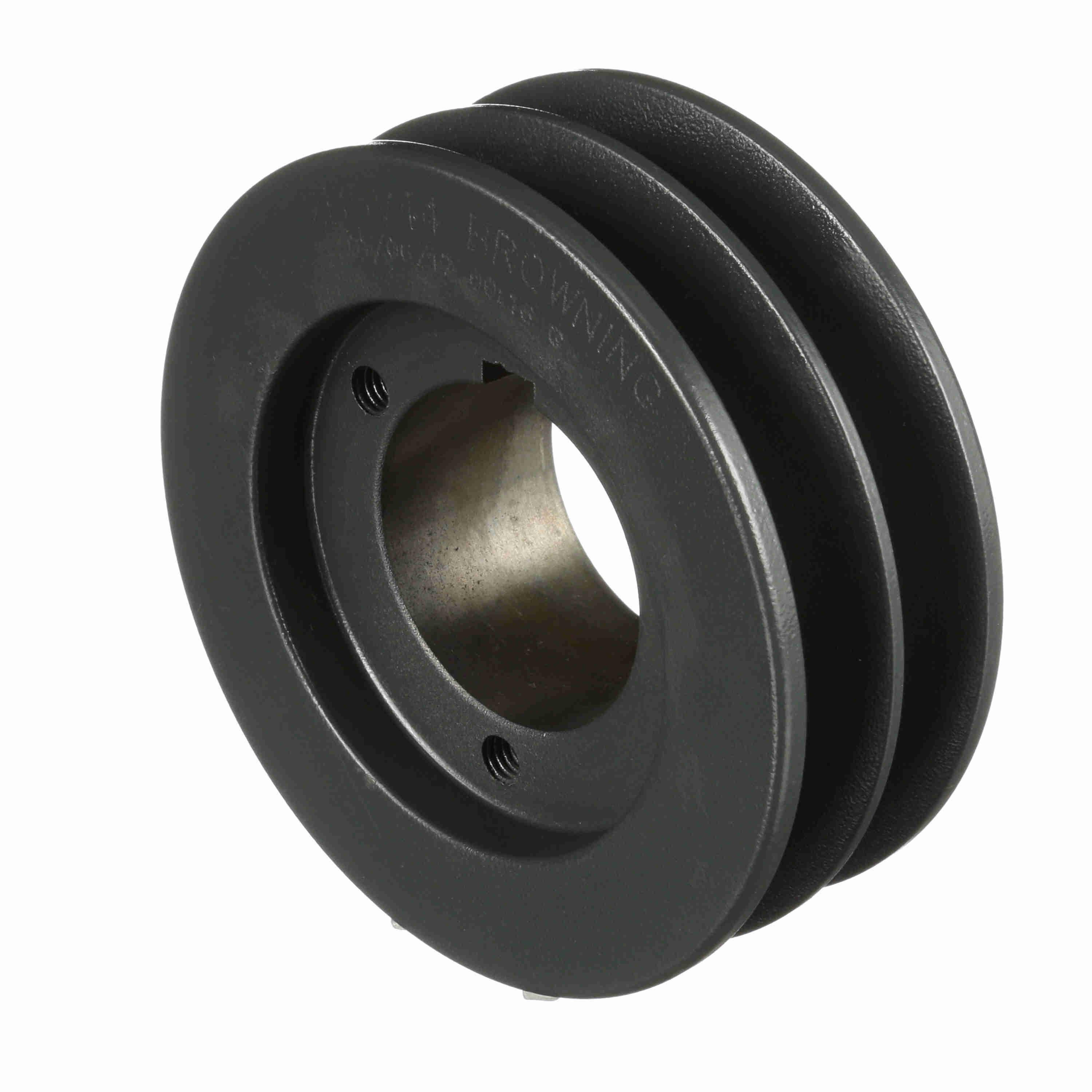

BROWNING 3695228 2B5V44 V-Belt Sheave, Multiple, Bushed Bore, 2 Groove, Cast Iron
Get it by Tuesday, Jun 17
€144.40 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | V-Belt Sheave |
| Belt Series | A, B, 5V Series |
| Bore Dia. | 1/2" to 1 3/4" |
| Bore Type | Split Taper |
| Bushing Type | P1 |
| Face Width | 1 23/32" |
| Hub Projection | 7/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 4 1/2" |
| Min. Pitch Dia. | 4" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 4 17/25" |
| Overall Length | 2 9/64" |
| Pitch Dia. (5v) | 4 1/2" |
| Pitch Dia. (a) | 4 1/5" |
| Pitch Dia. (b) | 4.7" |
| Series | B5V Series |
| Suitable For Use With | Gripbelt A And B, 5V Cross Section Belts |
| System Of Measurement | Imperial |
| Weight | 1.86 Kg |
| Ship weight (kg) | 1.82 |
| Ship height (cm) | 11.89 |
| Ship length (cm) | 5.44 |
| Ship width (cm) | 11.89 |
| Country of Origin | US |
