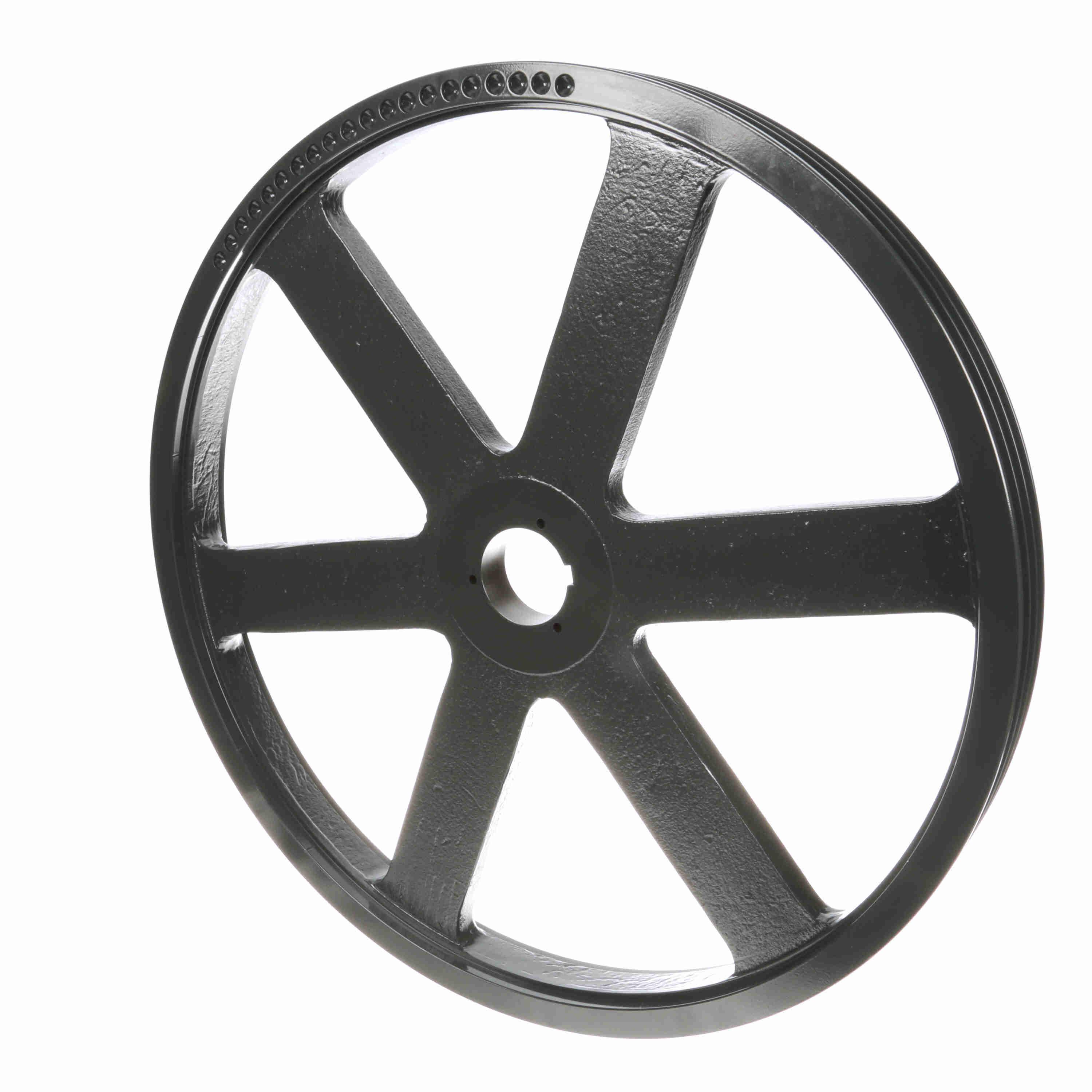

BROWNING 3694429 3B5V250 V-Belt Sheave, Multiple, Bushed Bore, 3 Groove, Cast Iron
Get it by Tuesday, Jun 17
€1,009.71 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | V-Belt Sheave |
| Belt Series | A, B, 5V Series |
| Bore Dia. | 1/2" to 2 7/16" |
| Bore Type | Split Taper |
| Bushing Type | B |
| Face Width | 2 7/16" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 25.1" |
| Min. Pitch Dia. | 24 1/2" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 25 7/25" |
| Overall Length | 2 27/32" |
| Pitch Dia. (5v) | 25.1" |
| Pitch Dia. (a) | 24 4/5" |
| Pitch Dia. (b) | 25.3" |
| Series | B5V Series |
| Suitable For Use With | Gripbelt A And B, 5V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 4 Arm |
| Weight | 30.844 Kg |
| Ship weight (kg) | 30.6 |
| Ship height (cm) | 64.21 |
| Ship length (cm) | 7.21 |
| Ship width (cm) | 64.21 |
| Country of Origin | US |
