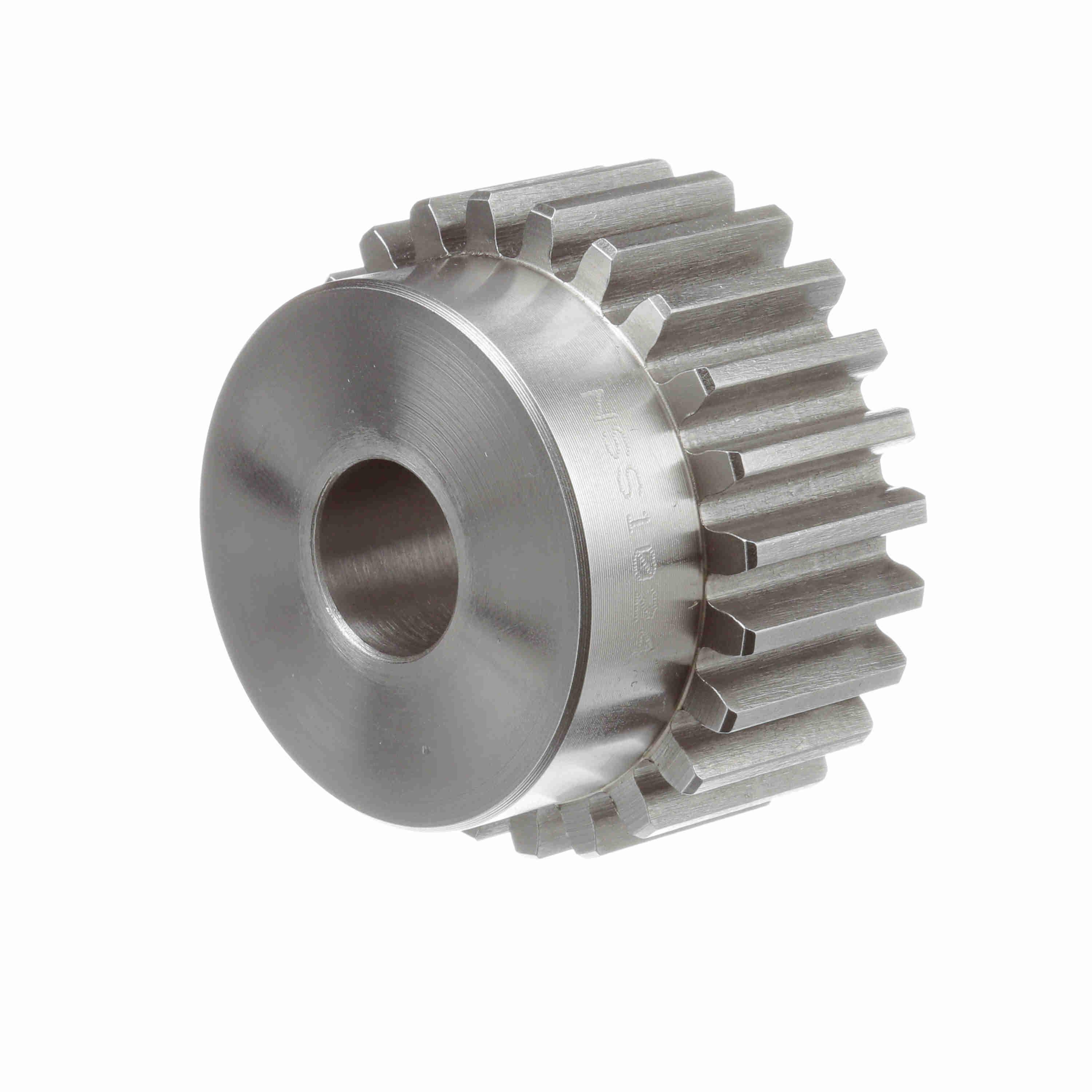

BROWNING 1211929 NSS1024 Spur Gear, Plain Bore, 14.5 Pressure Angle, 10 Pitch, Steel
€176.66 /unit
Request a Quote
Payment
Payment
Item | Spur Gear |
Diametral Pitch | 10 DP |
Face Width | 1" |
Gear Ratio | 1:1 |
Hub Dia. | 2.109" |
Hub Projection | 5/8" |
Material | Steel |
Number Of Teeth | 24 |
Outside Dia. | 2 3/5" |
Overall Length | 1 5/8" |
Pitch Dia. | 2 2/5" |
Pressure Angle | 14.5° |
Type | Minimum Plain Bore Type 2 |
Ship weight (kg) | 0.77 |
Country of Origin | US |
