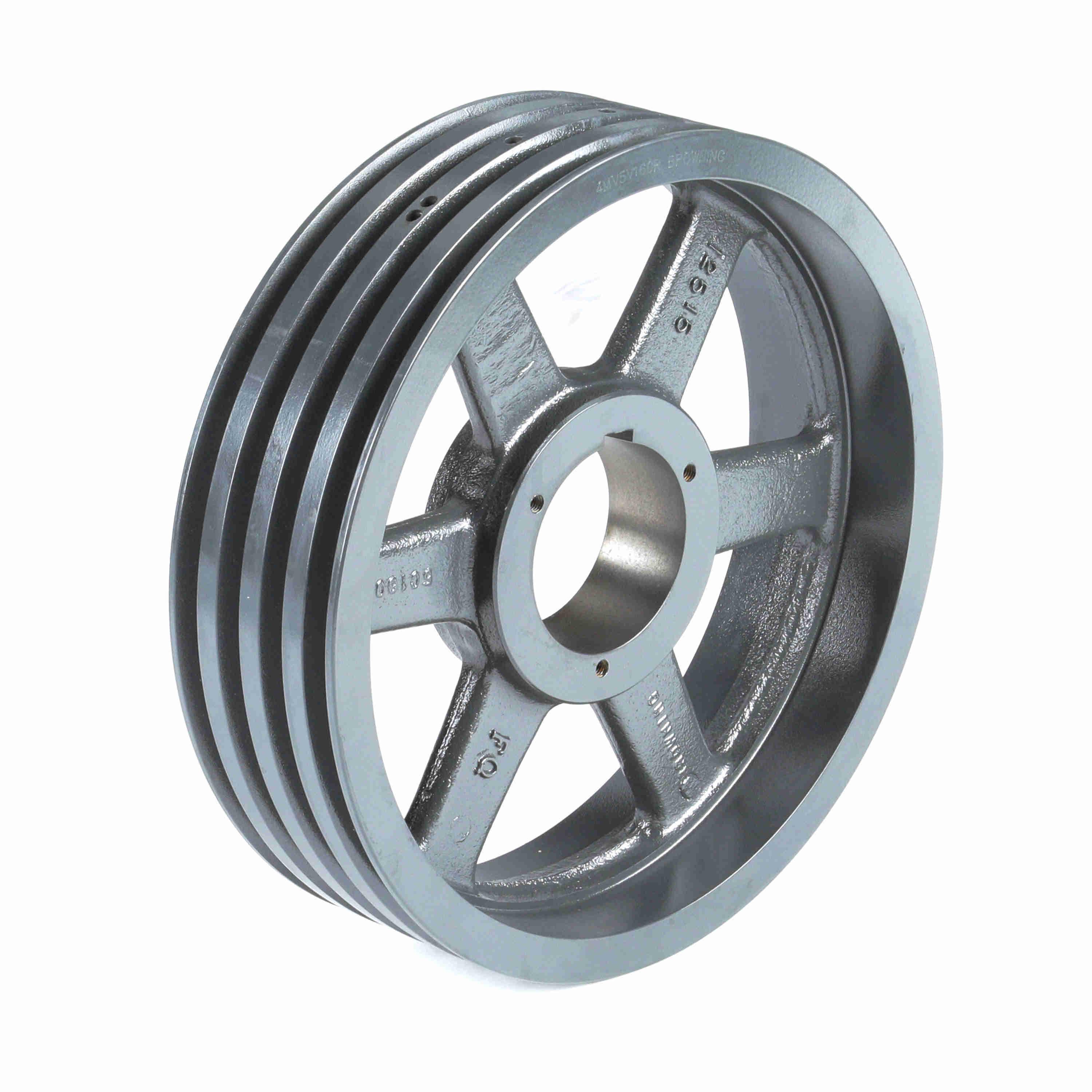

BROWNING 1023787 4MV5V300S V-Belt Sheave, Multiple, Variable Pitch, Bushed Bore, 4 Groove, Cast Iron
Get it by Monday, Jun 16
€3,986.53 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | V-Belt Sheave |
| Belt Series | 5V Series |
| Bore Dia. | 1 11/16" to 4 1/4" |
| Bore Type | Bushed |
| Bushing Type | S1 |
| Face Width | 4 3/8" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 5/8" |
| Max. Face Width | 4 3/8" |
| Min. Belt Width | 5/8" |
| Min. Face Width | 4 3/8" |
| Min. Plain Bore | No |
| No. Of Grooves | 4 |
| Outside Dia. | 30" |
| Overall Length | 5 9/32" |
| Pitch Dia. | 29.9" |
| Series | MVP Series |
| Suitable For Use With | Gripbelt 5V Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type 13 Arm |
| Weight | 151 lbs. |
| Ship weight (kg) | 67.95 |
| Ship height (cm) | 76.2 |
| Ship length (cm) | 13.41 |
| Ship width (cm) | 76.2 |
| Country of Origin | US |
