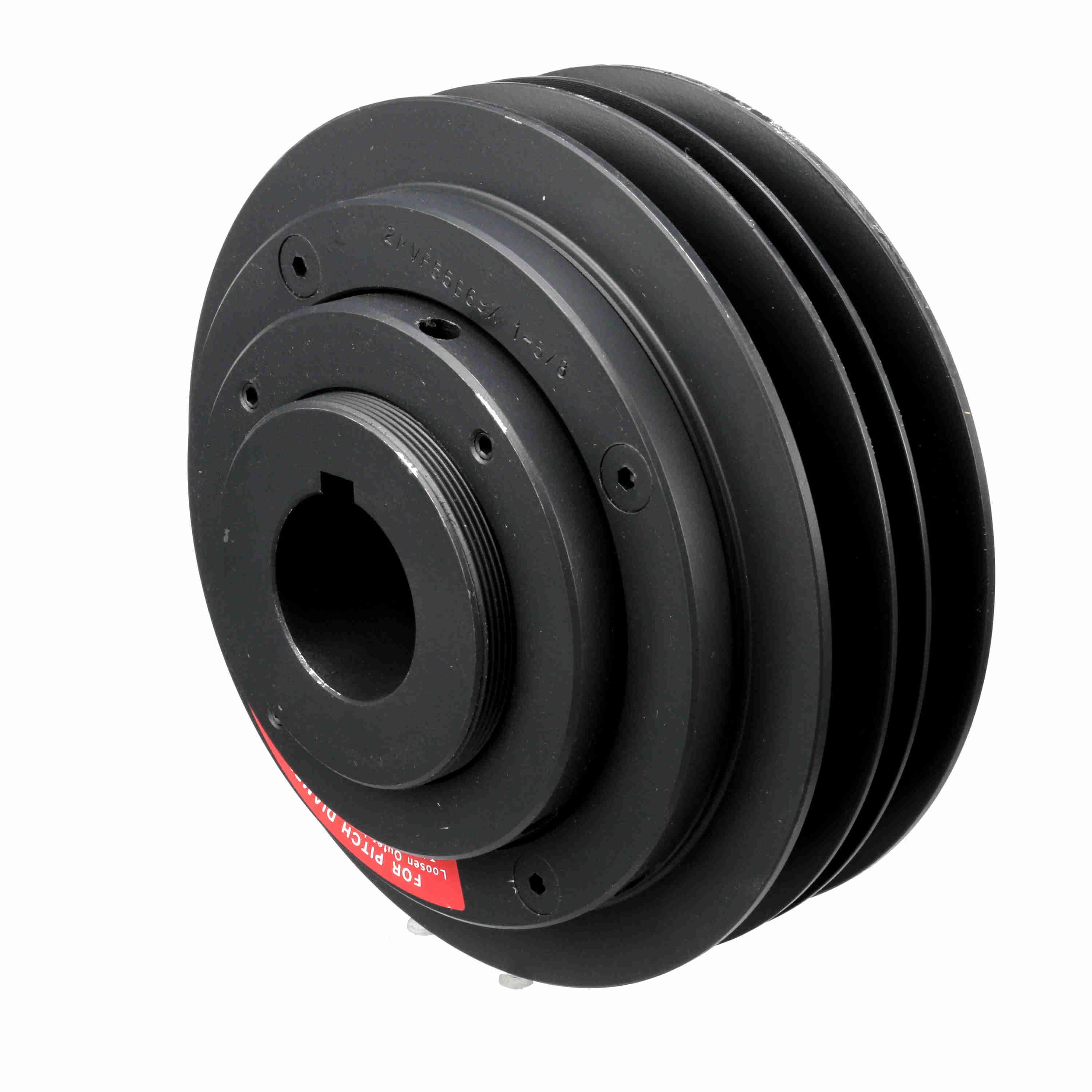

BROWNING 1020312 2MVP55B69X 1 5/8 V-Belt Sheave, Multiple, Variable Pitch, Finish Bore, 2 Groove, Cast Iron
Get it by Tuesday, Jun 17
€1,213.83 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | V-Belt Sheave |
| Adjustment Method | Manual Turn |
| Belt Series | A, B Series |
| Bore Dia. | 1 5/8" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 1 1/16" to 1 15/16" |
| Hub Projection | 1/4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Belt Width | 0.656" |
| Max. Face Width | 2.313" |
| Max. Pitch Dia. | 6.9" |
| Min. Belt Width | 1/2" |
| Min. Face Width | 1.938" |
| Min. Pitch Dia. | 5 2/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 2 |
| Outside Dia. | 7.18" |
| Overall Length | 3 5/8" |
| Pitch Dia. (a) | 5.6" to 6.7" |
| Pitch Dia. (b) | 5 4/5" to 7 1/5" |
| Series | MVP Series |
| Suitable For Use With | Gripbelt A And B Cross Section Belts |
| System Of Measurement | Imperial |
| Ship weight (kg) | 8.53 |
| Ship height (cm) | 18.24 |
| Ship length (cm) | 9.22 |
| Ship width (cm) | 18.24 |
| Country of Origin | US |
