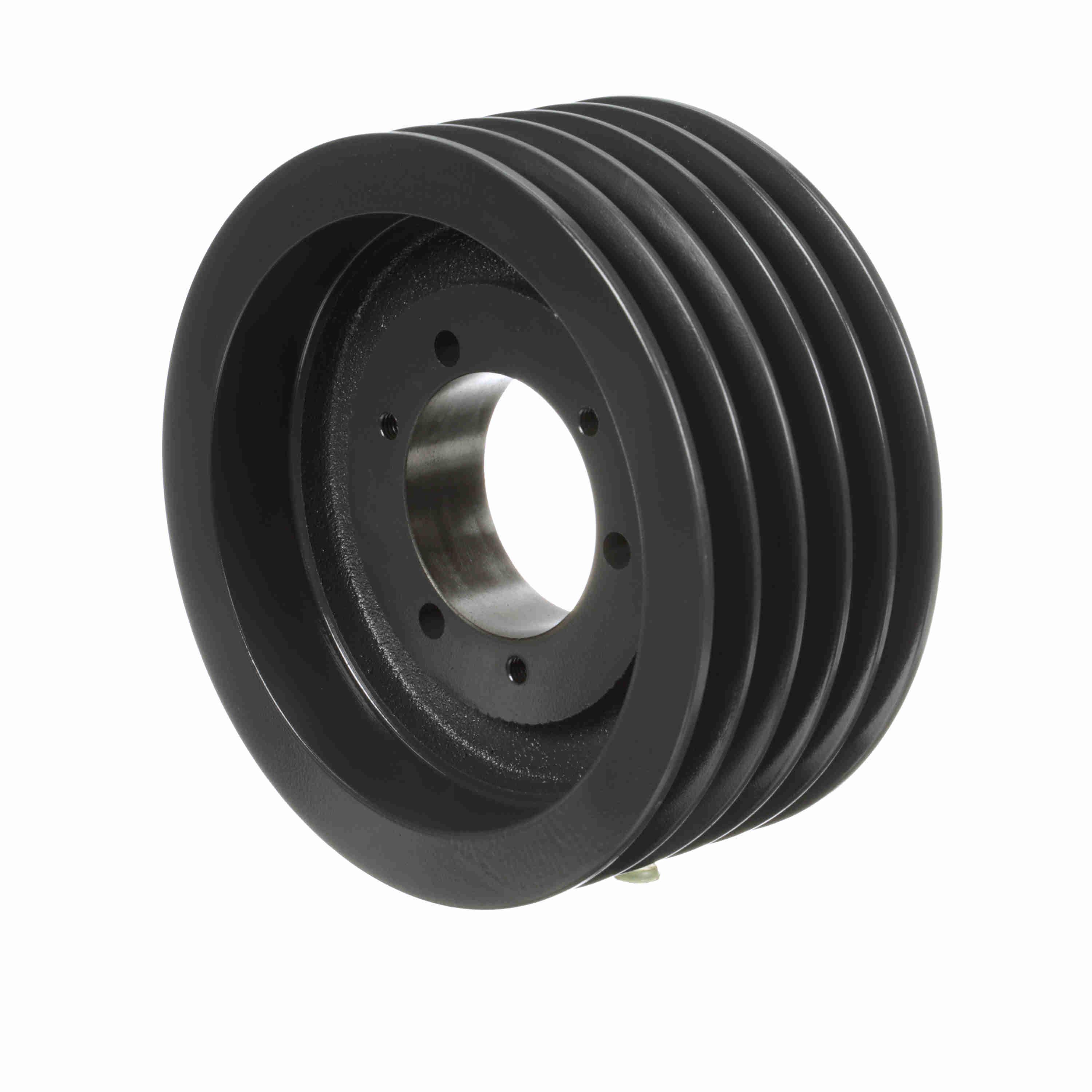

BROWNING 1005339 5B86SF V-Belt Sheave, Multiple, Bushed Bore, 5 Groove, Cast Iron
€400.24 /unit
Request a Quote
Payment
Payment
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1/2" to 2 15/16" |
| Bore Type | QD |
| Bushing Type | SF |
| Face Width | 4" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 8 3/5" |
| Min. Pitch Dia. | 8 1/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 5 |
| Outside Dia. | 8.95" |
| Overall Length | 8.95" |
| Pitch Dia. (a) | 8 2/5" |
| Pitch Dia. (b) | 8.9" |
| Suitable For Use With | Gripbelt A And B Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type A Web |
| Weight | 11.168 Kg |
| Ship weight (kg) | 11.07 |
| Ship height (cm) | 22.73 |
| Ship width (cm) | 22.73 |
| Country of Origin | US |
