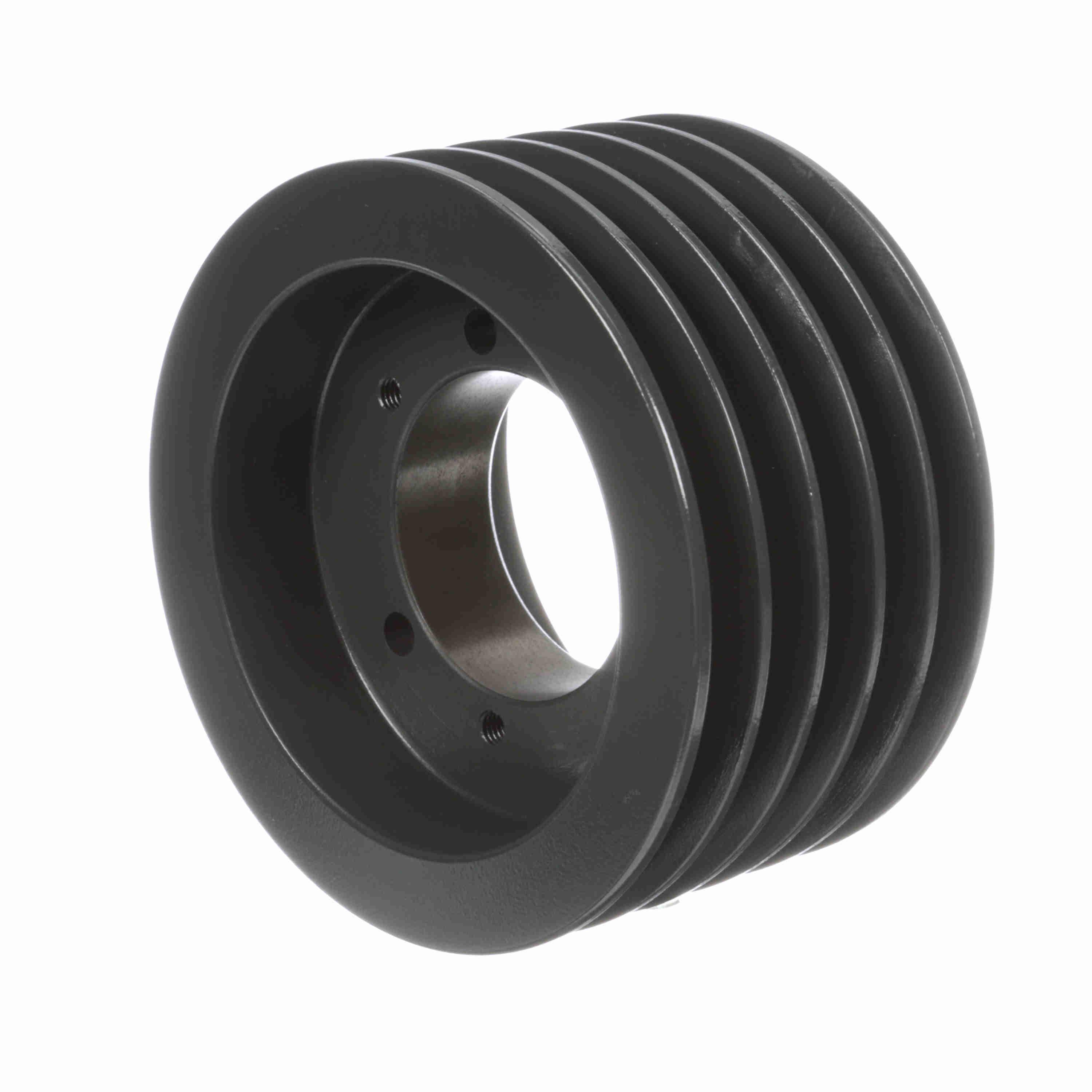

BROWNING 1005305 5B70SF V-Belt Sheave, Multiple, Bushed Bore, 5 Groove, Cast Iron
€322.15 /unit
Request a Quote
Payment
Payment
| Item | V-Belt Sheave |
| Bore Dia. | 1/2" to 2 15/16" |
| Bore Type | QD |
| Bushing Type | SF |
| Face Width | 4" |
| Material | Cast Iron |
| No. Of Grooves | 5 |
| Outside Dia. | 7.35" |
| Overall Length | 7.35" |
| Pitch Dia. (a) | 6 4/5" |
| Pitch Dia. (b) | 7.3" |
| Suitable For Use With | Gripbelt A And B Cross Section V-Belt |
| Type | Type A Solid |
| Ship weight (kg) | 7.99 |
| Ship height (cm) | 18.67 |
| Ship width (cm) | 18.67 |
| Country of Origin | US |
