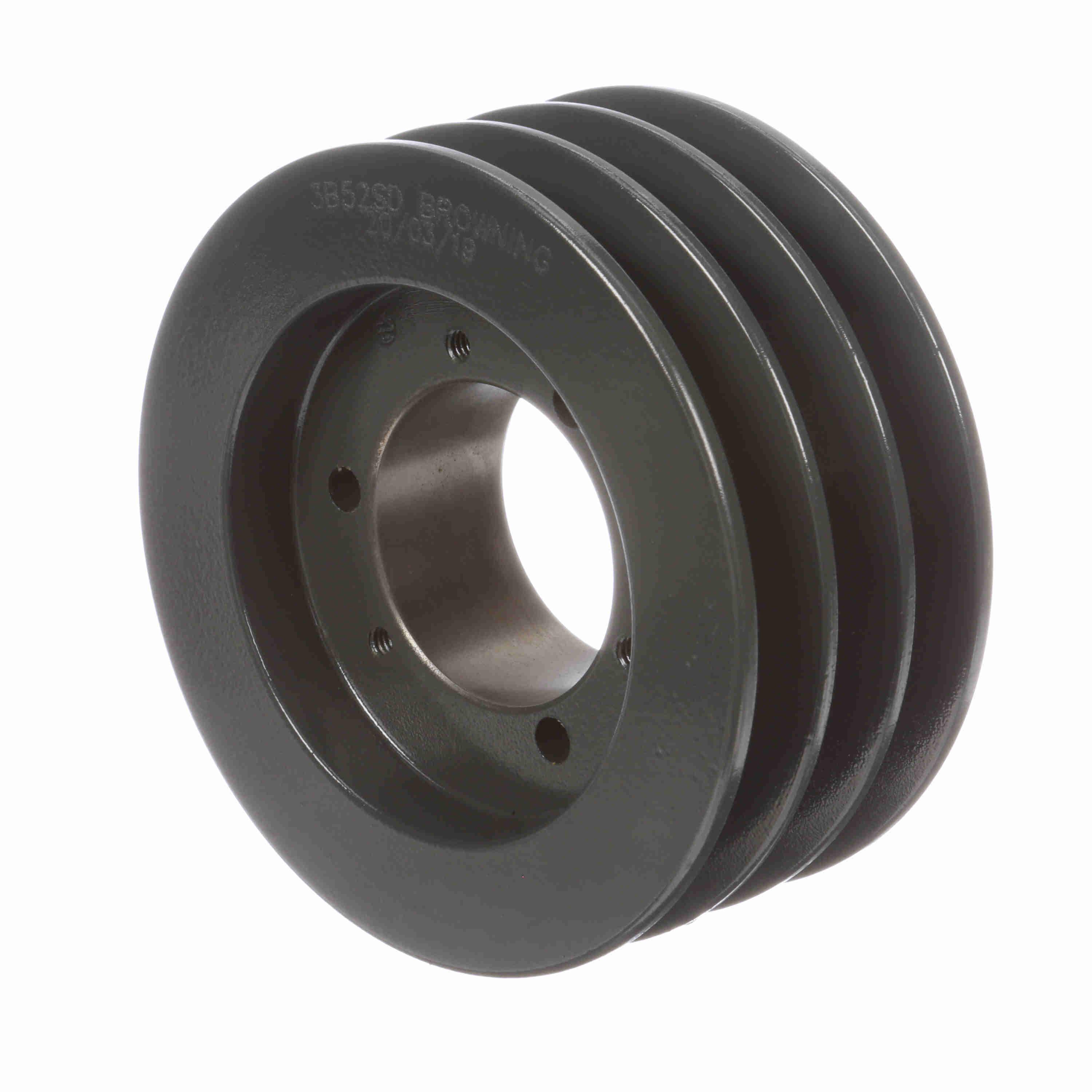

BROWNING 1004555 3B52SD V-Belt Sheave, Multiple, Bushed Bore, 3 Groove, Cast Iron
€166.89 /unit
Request a Quote
Payment
Payment
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1/2" to 2" |
| Bore Type | QD |
| Bushing Type | SD |
| Face Width | 2 1/2" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 5 1/5" |
| Min. Pitch Dia. | 4 4/5" |
| Min. Plain Bore | No |
| No. Of Grooves | 3 |
| Outside Dia. | 5.55" |
| Overall Length | 5.55" |
| Pitch Dia. (a) | 5" |
| Pitch Dia. (b) | 5 1/2" |
| Suitable For Use With | Gripbelt A And B Cross Section V-Belt |
| System Of Measurement | Imperial |
| Type | Type A Solid |
| Weight | 3.42 Kg |
| Ship weight (kg) | 3.39 |
| Ship height (cm) | 14.1 |
| Ship width (cm) | 14.1 |
| Country of Origin | US |
