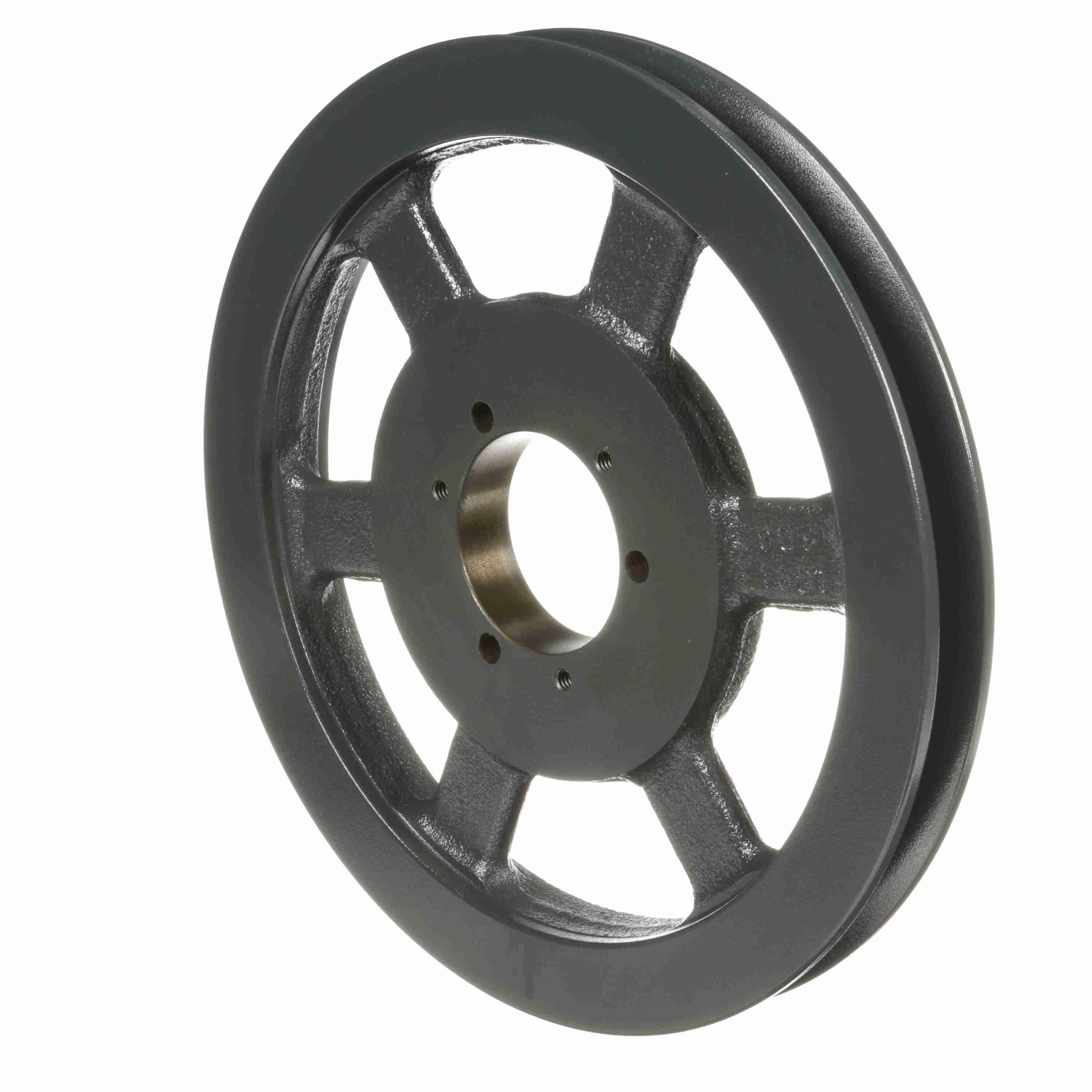

BROWNING 1004050 1B94SDS V-Belt Sheave, Multiple, Bushed Bore, 1 Groove, Cast Iron
Get it by Wednesday, Jun 18
€201.96 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1/2" to 2" |
| Bore Type | QD |
| Bushing Type | SDS |
| Face Width | 1" |
| Hub Projection | 0.60625" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 9 2/5" |
| Min. Pitch Dia. | 9" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 9 3/4" |
| Overall Length | 1.60625" |
| Pitch Dia. (a) | 9 1/5" |
| Pitch Dia. (b) | 9.7" |
| Suitable For Use With | AB Cross Section V-Belts |
| System Of Measurement | Imperial |
| Type | Type D3 |
| Weight | 10.5 lbs. |
| Ship weight (kg) | 3.87 |
| Ship height (cm) | 24.77 |
| Ship length (cm) | 4.09 |
| Ship width (cm) | 24.77 |
| Country of Origin | US |
