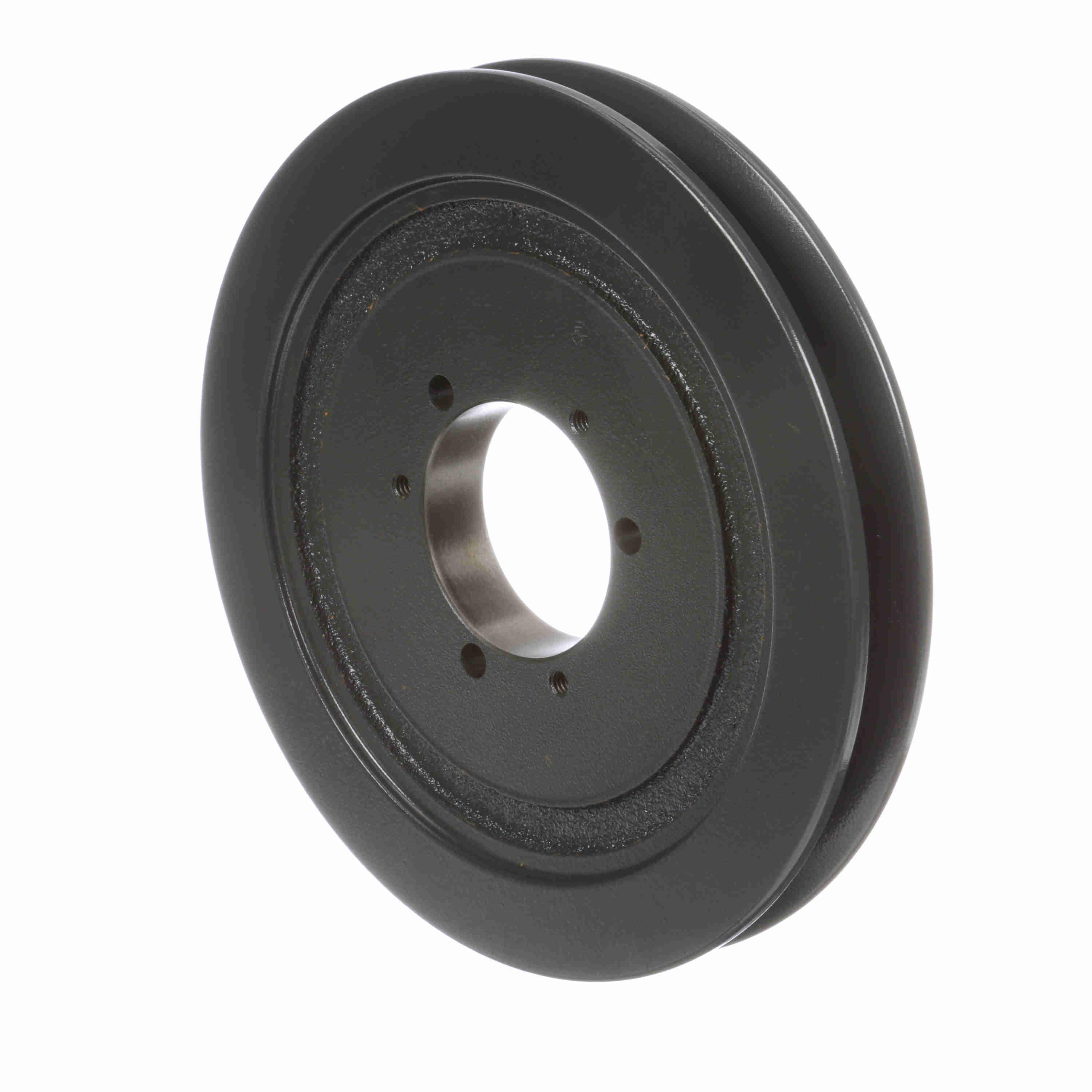

BROWNING 1004027 1B74SDS V-Belt Sheave, Multiple, Bushed Bore, 1 Groove, Cast Iron
Get it by Tuesday, Jun 17
€181.72 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | V-Belt Sheave |
| Belt Series | A, B Series |
| Bore Dia. | 1/2" to 2" |
| Bore Type | QD |
| Bushing Type | SDS |
| Face Width | 1" |
| Hub Projection | 0.60625" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 7 2/5" |
| Min. Pitch Dia. | 7" |
| Min. Plain Bore | No |
| No. Of Grooves | 1 |
| Outside Dia. | 7 3/4" |
| Overall Length | 1.60625" |
| Pitch Dia. (a) | 7 1/5" |
| Pitch Dia. (b) | 7.7" |
| Suitable For Use With | AB Cross Section V-Belts |
| System Of Measurement | Imperial |
| Type | Type D3 |
| Weight | 3.065 Kg |
| Ship weight (kg) | 3.04 |
| Ship height (cm) | 19.69 |
| Ship length (cm) | 4.09 |
| Ship width (cm) | 19.69 |
| Country of Origin | US |
