| Item | Mixing Valve |
| Body Material | Bronze |
| Cold Inlet Temp. | +120°F to +140°F |
| Flow Rate | 26 GPM |
| For Use With | Emergency Fixtures |
| Hot Inlet Temp. | 180°F |
| Inlet Size | 3/4" |
| Inlet Type | FNPT |
| Max. Pressure | 125 psi |
| Outlet Size | 1" |
| Outlet Type | FNPT |
| Overall Height | 22 3/4" |
| Overall Width | 5 1/8" |
| Temp. Range | +65°F to +95°F |
| Flow Coefficient (cv) | 4.75 |
| For Media | Water |
| Includes Temperature Gauge | Temperature Gauge Included |
| Inlet (cold) Connection Gender | Female |
| Inlet (cold) Connection Size | 3/4" |
| Inlet (cold) Connection Type | NPT |
| Inlet (hot) Connection Gender | Female |
| Inlet Connection Size | 3/4" |
| Inlet Connection Type | NPT |
| Max. Inlet (cold) Temperature | 140°F |
| Max. Inlet (hot) Temperature | 180°F |
| Max. Operating Pressure | 125 psi |
| Max. Outlet Operating Temperature | 95°F |
| Min. Inlet (cold) Temperature | 120°F |
| Min. Inlet (hot) Temperature | 120°F |
| Min. Operating Pressure | 45 psi |
| Min. Outlet Operating Temperature | 65°F |
| Outlet Connection Size | 1" |
| Outlet Connection Type | NPT |
| Standards | ANSI Z358.1 |
| Ship weight (kg) | 9 |
| Ship height (cm) | 9.65 |
| Ship length (cm) | 28.45 |
| Ship width (cm) | 25.91 |
| HS code | 8481809015 |
| Country of Origin | US |

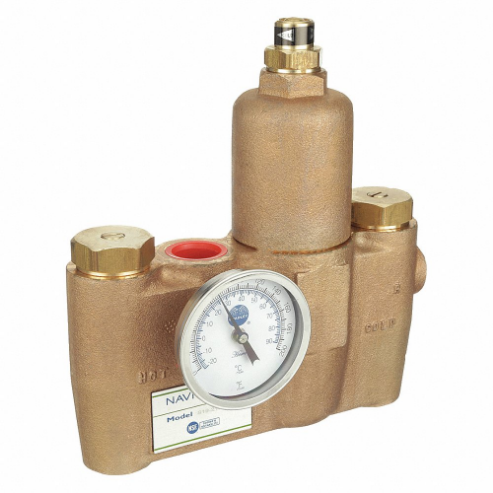

Bradley S19-2100 thermostatic mixing valve maintains water temperature by blending hot and cold water together, ensuring safety while taking a shower or washing hands.
A. This mixing valve can be operated at temperatures ranging from 65 to 90 degrees F.
A. A dial thermometer measures and indicates the temperature of fluids passing through the valve.
