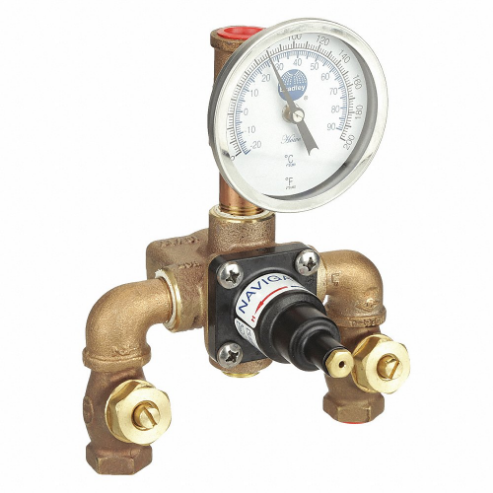

BRADLEY S19-2000 Thermostatic Mixing Valve
Get it by Tuesday, Jun 17
€2,003.40 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Mixing Valve |
| Body Material | Bronze |
| Cold Inlet Temp. | +120°F to +140°F |
| Color | Yellow |
| Compatible With Brand | Bradley |
| Features | Cold Water Bypass, Emergency Shutoff |
| Flow Rate | 7 GPM |
| For Use With | Eyewashes |
| Hot Inlet Temp. | 180°F |
| Inlet Pipe Gender | Female |
| Inlet Pipe Size | 1/2" |
| Inlet Size | 1/2" |
| Max. Pressure | 125 psi |
| Outlet Pipe Gender | Female |
| Outlet Pipe Size | 1/2" |
| Outlet Size | 1/2" |
| Outlet Type | NPT |
| Overall Height | 8 3/8" |
| Overall Width | 5 1/2" |
| Products By Industry | General Approach |
| Temp. Range | +65°F to +95°F |
| Depth | 6 1/4" |
| Height | 8 3/8" |
| Inlet Pipe Thread Type | NPT |
| Material | Brass |
| Max Flow Rate | 7 GPM |
| Max Inlet Pressure | 125 psi |
| Max Inlet Temp | 180°F |
| Max Water Output Temp | 95°F |
| Minimum Water Output Temperature | 65°F |
| Outlet Pipe Thread Type | NPT |
| Series | EFX8 Series |
| Standards | ANSI Z358.1, ASSE 1071 |
| Valve Features | Cold Water Bypass, Emergency Shutoff |
| Width | 5 1/2" |
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 24.13 |
| Ship width (cm) | 18.29 |
| HS code | 8481803070 |
| Country of Origin | US |
BRADLEYS19-2000 thermostatic mixing valve mixes hot and cold water to achieve a suitable flushing temperature. It is beneficial in showers, sinks, faucets, spigots and other plumbing fixtures.
A. It has a liquid-filled thermostat that maintains water temperature within +/-3 degrees Fahrenheit of the desired temperature.
A. 125 psi.
A. 7 GPM.
