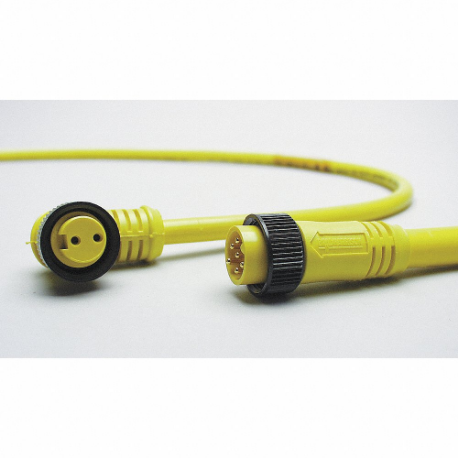

| Item | Cordset |
| Angle | 90° |
| Cable Length | 20 ft. |
| Connector Type | Female |
| End 1 Gender | Female |
| End 1 Mounting Orientation | Right Angle |
| End 1 Number Of Pins | 4 |
| End Connection Type 1 | 7/8" |
| End Connection Type 2 | Bare Wire |
| Features | Low Resistance Contact Design With Gold Over Palladium Nickel Plating |
| Ip Rating | IP67, IP68 |
| Jacket Color | Yellow |
| Jacket Material | PVC |
| Max. Amps | 10A |
| Max. Operating Temp. | 221°F |
| Max. Voltage | 600V AC/DC |
| Min. Operating Temp. | -4°F |
| Nema Rating | NEMA 6P |
| Number Of Wires | 4 |
| Wire Size | 16 AWG |
| Cable Jacket Color | Yellow |
| Cable Jacket Material | PVC |
| End 1 Connection | 7/8" Female |
| End 1 Connection Type | 7/8" |
| End 1 Thread | 7/8"-16 |
| End 2 Connection | Bare Wire |
| End 2 Connection Type | Bare Wire |
| Maximum Current (a) | 10A |
| Maximum Operating Temperature | 221°F |
| Maximum Voltage | 600V DC/600V AC |
| Minimum Operating Temperature | -4°F |
| Standards | CSA CERTIFIED, UL LISTED |
| Ship weight (kg) | 0.92 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Product | Model | Cable Length | Connector Type | End 1 Number Of Pins | End 2 Number Of Pins | Ip Rating | Item | Max. Amps | Number Of Conductors | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
102000A01F060 | 6ft. | Female Straight | 2 | - | 67,68 | Cordset | 13 | 2 | €48.80 | |
|
102000A01F120 | 12ft. | Female Straight | 2 | - | 67,68 | Cordset | 13 | 2 | €55.56 | |
|
102002A01F060 | 6ft. | Male Straight | 2 | - | 67,68 | Cordset | 13 | 2 | €37.10 | |
|
102002A01F120 | 12ft. | Male Straight | 2 | - | 67,68 | Cordset | 13 | 2 | €50.39 | |
 |
103000A01F060 | 6ft. | Female Straight | 3 | - | 67,68 | Cordset | 13 | 3 | €53.69 | |
 |
103000A01F120 | 12ft. | Female Straight | 3 | - | - | Cordset | - | - | €63.50 | |
|
103000A01F200 | 20ft | Female Straight | 3 | - | 67,68 | Cordset | 13 | 3 | €82.50 |
